1000L/H Pond Brushless DC24V

Click for original picture
Fob Price: Discuss personally
Port: SHENZHEN
Supply Ability: 3
Payment Terms: delivery withindays since payment
Location: China Guangdong
  banny    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:Blue Fish

Description:Blue Fish 1000L/H Pond Brushless DC24V Solar Circulation Water Pump

Origin:China Guangdong

Port:SHENZHEN

Supply Ablility:3

Delivery Time:2017-11-10

Packaging Details:Blue Fish 1000L/H Pond Brushless DC24V Solar Circulation Water Pump

Product detail: Specifications:

1、Dimension:90mm*46.4mm*72.4mm

2、Weight:270g

3、Outlet diameter: 1/2” thread

4、Inlet diameter: 1/2” thread

5、Pump body material:PA66+30%GF

6、 Max. Loading current:rated current±0.1

7、Types of fluid: water,oil,acid-base solution(according the test result)

8、Fluid working temperature;:-10-50℃(please keep the fluid from freezing)

9、Working environment temperature:-10-50℃

10、Storage temperature:-10-50℃

11、Noise level:<40dB(while pumping water)

12、Water proof level:IP68(submersible)

13、Power supply:solar panel ,battery,adapter,battery module

14、Life expectancy: more than 20,000 hrs

Features:

1、Small size,high efficiency,long life expectancy,low noise level;

2、Ceramic shaft,Carbon graphite seal  low coefficient of friction;

3、0.5% non-comformity rate < 0.5%

4、Brushless, no mechanical wear,electronic commutator,

5、The electricity and fluid are insulated from each other,sealed with epoxy,100% water proof,leakage proof;

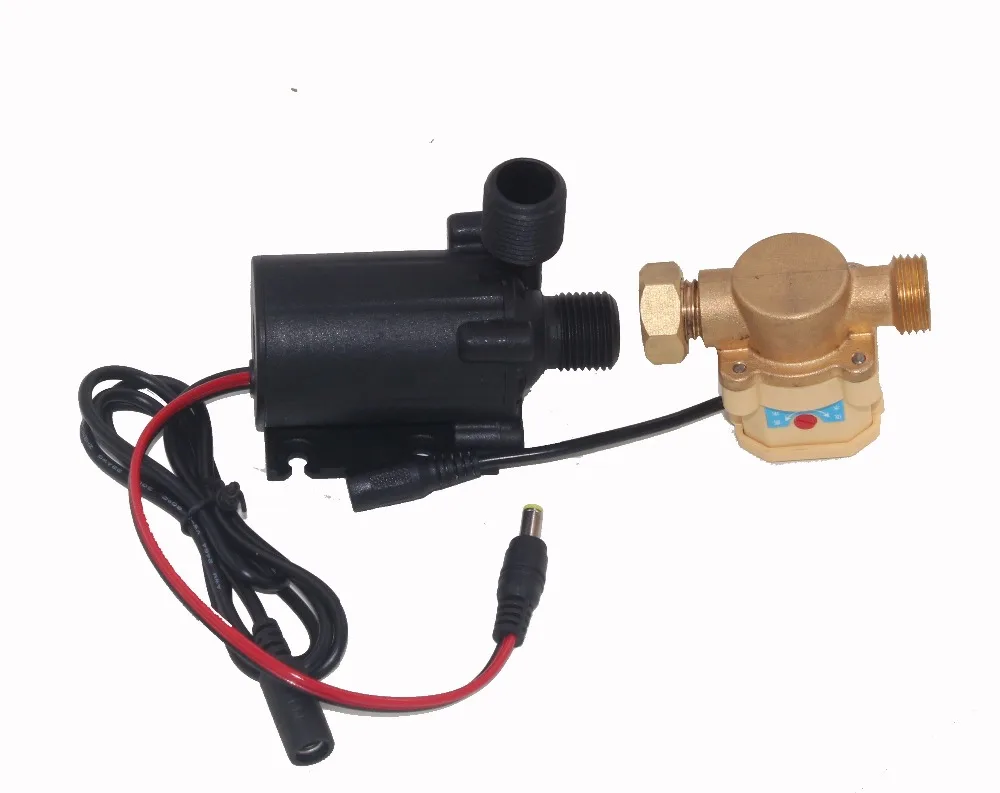

Product Photos:

IMG_8444

IMG_8439

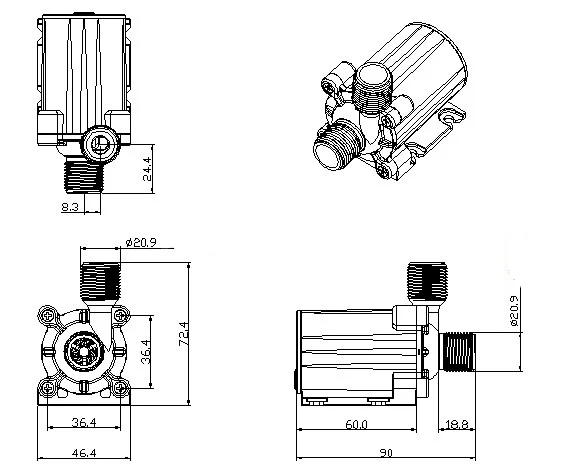

Dimensions:

tuzhi

Spare Parts:


Flow Rate / Lift Curve:

Inked_LI

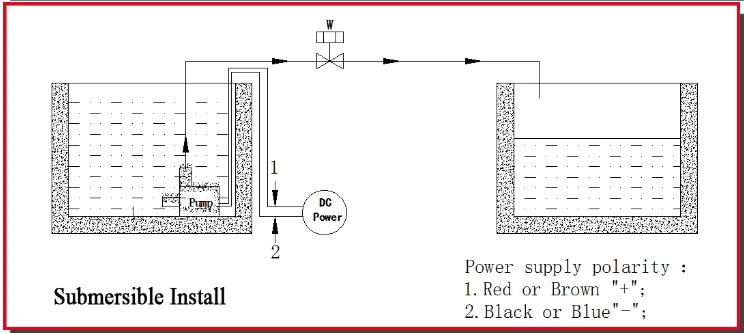

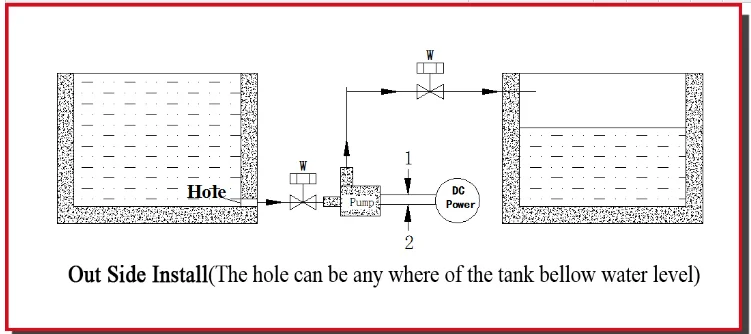

ow to install

QQ20170704091706QQ20170704091657
