200L/H 1.5M Water Pump

Brand:Blue Fish

Description:Parameters： Volatge(V):12V Power(W):4.8W Max static water head(M):1.5M Max static water flow(L/H):200L/H Size(MM):43*38*30MM Dimension of outlet(MM):8.5MM Net weight(KG):0.11KG Specifications: 1.Driving method:Brushless,Permanent magnetic 2.Pump material:ABS,PES,SPS,PPS,PA66+30%GF(Optional) 3.Using condition:Submerible 4.Fluids:Fresh,oil and salt water 5.Max working temp:60 Celsius 6.Noise:<35dB 7.Waterproof class:IP68(can be submersible installed) 8.Life span:More than 30,000hrs 9.Power supply:Solar panel,DC electric source,adapter,battery 10.Protection function:Drying,running and blocking protection(submersible) Products Photos: InkedIMG_9575_LI InkedIMG_9579_LI InkedIMG_9578_LI Dimensions: tu Spare Parts: Features: Ø DC12V, low-voltage, safe, NO.1 aquarium submersible pump in china. Ø 100% copper motor, brushless, non-pollution, small size with high efficient ,long life span. Ø super energy saving 50%. Ø Small size, high efficiency, maintenance-free, low consumption, strong anti-jamming ability, stable performance. Ø Adopt silicone foot to absorb vibration &reduce noise,easy for installation. Ø Stator and control circuits are completely sealed by epoxy resin completely separated with rotor, waterproof, avoided water-leakage problem which long exists in normal DC motor pump products. Ø Protection functions can be customized such as lock protection, dry-run protection and so on. Ø Reduced the mortality to 0.05% after long-time study by R&D dep. Ø Suitable for submersible installation. Ø Offer ODM serve for pump and other controller system.

Origin:China Guangdong

Model:ZP30-200

Port:SHENZHEN

Payment Terms:T/T

Supply Ablility:3

Delivery Time:2017-11-10

Product detail: Parameters：

Volatge(V):12V

Power(W):4.8W

Max static water head(M):1.5M

Max static water flow(L/H):200L/H

Size(MM):43*38*30MM

Dimension of outlet(MM):8.5MM

Net weight(KG):0.11KG

Specifications:

1.Driving method:Brushless,Permanent magnetic

2.Pump material:ABS,PES,SPS,PPS,PA66+30%GF(Optional)

3.Using condition:Submerible

4.Fluids:Fresh,oil and salt water

5.Max working temp:60 Celsius

6.Noise:<35dB

7.Waterproof class:IP68(can be submersible installed)

8.Life span:More than 30,000hrs

9.Power supply:Solar panel,DC electric source,adapter,battery

10.Protection function:Drying,running and blocking protection(submersible)

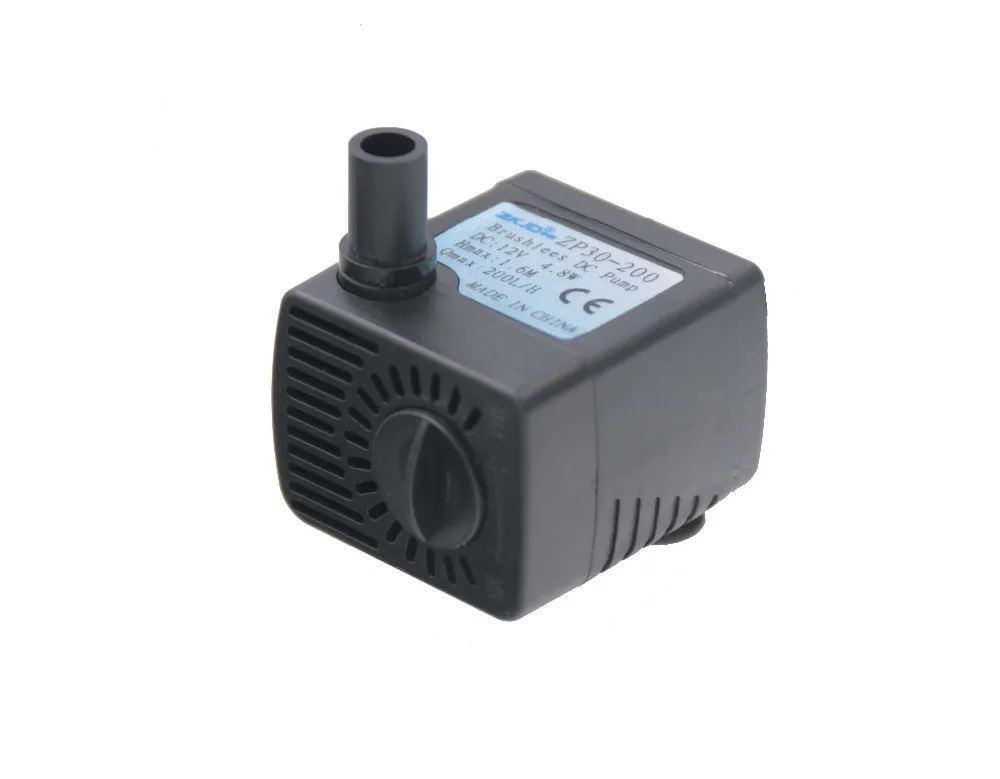

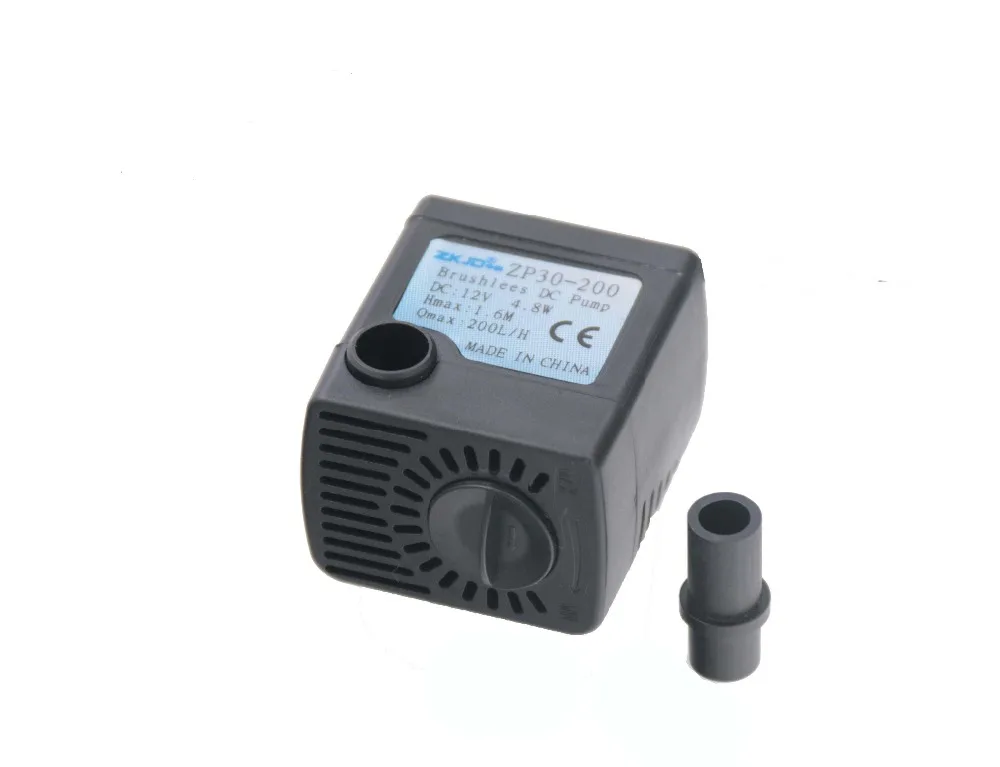

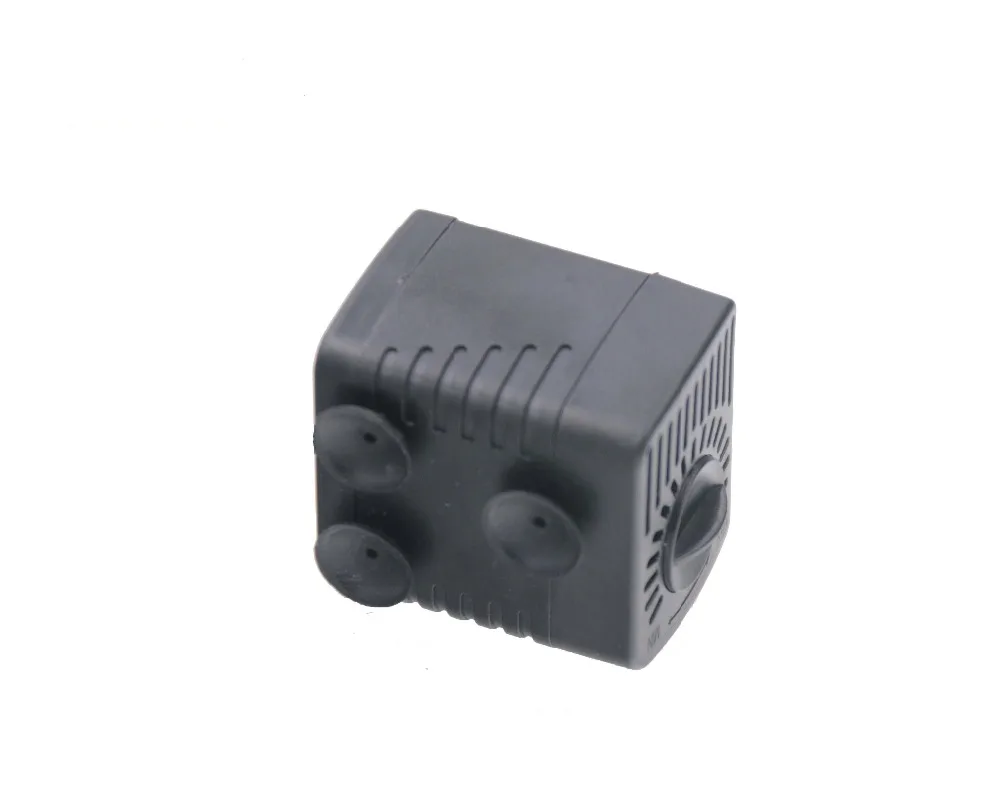

Products Photos:

Dimensions:

Spare Parts:

Features:

Ø DC12V, low-voltage, safe, NO.1 aquarium submersible pump in china.

Ø 100% copper motor, brushless, non-pollution, small size with high efficient ,long life span.

Ø super energy saving 50%.

Ø Small size, high efficiency, maintenance-free, low consumption, strong anti-jamming ability, stable performance.

Ø Adopt silicone foot to absorb vibration &reduce noise,easy for installation.

Ø Stator and control circuits are completely sealed by epoxy resin completely separated with rotor, waterproof,           avoided water-leakage problem which long exists in normal DC motor pump products.

Ø Protection functions can be customized such as lock protection, dry-run protection and so on.

Ø Reduced the mortality to 0.05% after long-time study by R&D dep.

Ø Suitable for submersible installation.

Ø Offer ODM serve for pump and other controller system.
