wheat powder sifter

Click for original picture
Power: 0.37-2.2 kw
screen mesh: 10-500
voltage: 380v/220v
Fob Price: Discuss personally
Port: Qingdao,Shanghai
Supply Ability: 1
Payment Terms: delivery withindays since payment
Location: China Henan
  Betsy    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:Xianchen electric vibrating linear sifter

Description:linear vibrating sieve machine use vibration motor as vibration source, the materials is rosed and moved in the straight at the same time. The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlets.

Origin:China Henan

Model:XCZ

MOQ:1Sets

FOB:perSets1200--6500USD

Port:Qingdao,Shanghai

Payment Terms:T/T

Supply Ablility:1Sets

Supply Time:Day

Delivery Time:2017-05-25

Packaging Details:Outer packing is plywood case , which is up to the international standards. Inner packing is moisture-proof and water-proof membrane. All of package are wrapped by 0.55mm steel belt to further strengthen .

Product detail:

linear vibrating grading sieve machine:

all carbon steel
all SUS304/306L
contact material is 304/316. other parts are carbon steel
Motor warranty period:18 months                machine warranty period:12 months

直线筛2

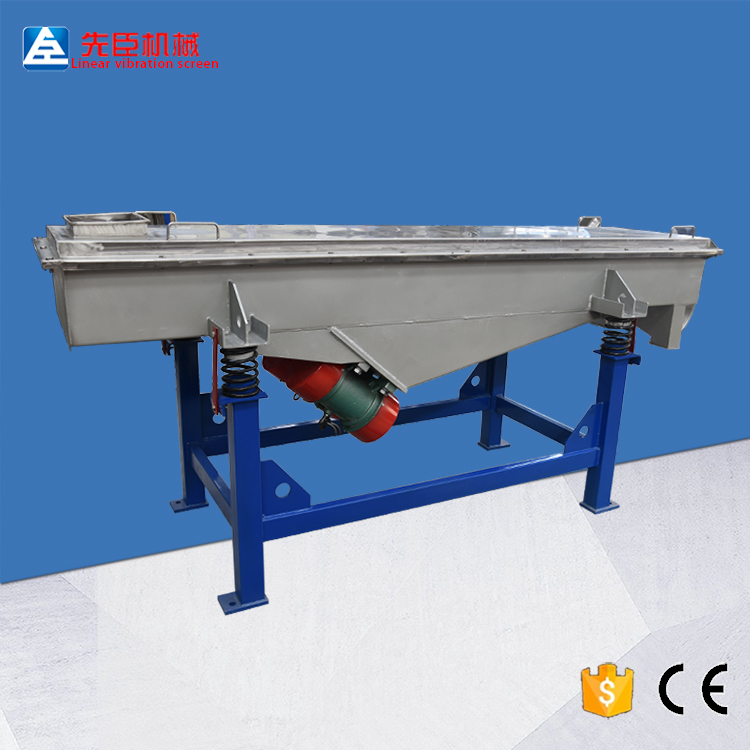

直线筛5

wheat powder sifter:

linear vibrating sieve machine use vibration motor as vibration source, the materials is rosed and moved in the straight at the same time. The materials are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlets.
linear vibration wheat flour sieve:
1)Suitable for size sieving, grading,decontaminating of material, with big processing capacity.
2)Simple structure, seal strict, low noise, easy to repairing, low energy consumption.
3)It can be installed one or more layers of screen.
4)Two vibrating motor as the excitation source, obvious processing effect.
5)Power distribution can be adjusted according to customers’ needs to adapt to the appropriate production conditions.
6)Mainly using in diggings, metallurgy, abrasive and abrasive tools, building materials etc





Model



granularity
(mm)



Voltage (v)



Power
(kw)



Motor model



Amplitude



Exciting force
(N)



Layer

XCZ-520

≥0.3

380

0.37-0.55

YZU-5-6

YZU-8-6

2-4

5000×2

8000×2

1-6

XCZ-525

≥0.3

380

XCZ-530

≥0.3

380

XCZ-1020

≥0.3

380

0.75-1.1

YZU-10-6

YZU-15-6

2-4

10000×2

15000×2

XCZ-1025

≥0.3

380

XCZ-1030

≥0.3

380

1.1-1.5

YZU-15-6

YZU-20-6

3-5

15000×2

20000×2

XCZ-1220

≥0.3

380

XCZ-1225

≥0.3

380

XCZ-1230

≥0.3

380

1.5-2.2

YZU-20-6

YZU-30-6

3-5

20000×2

30000×2

XCZ-1530

≥0.3

380
