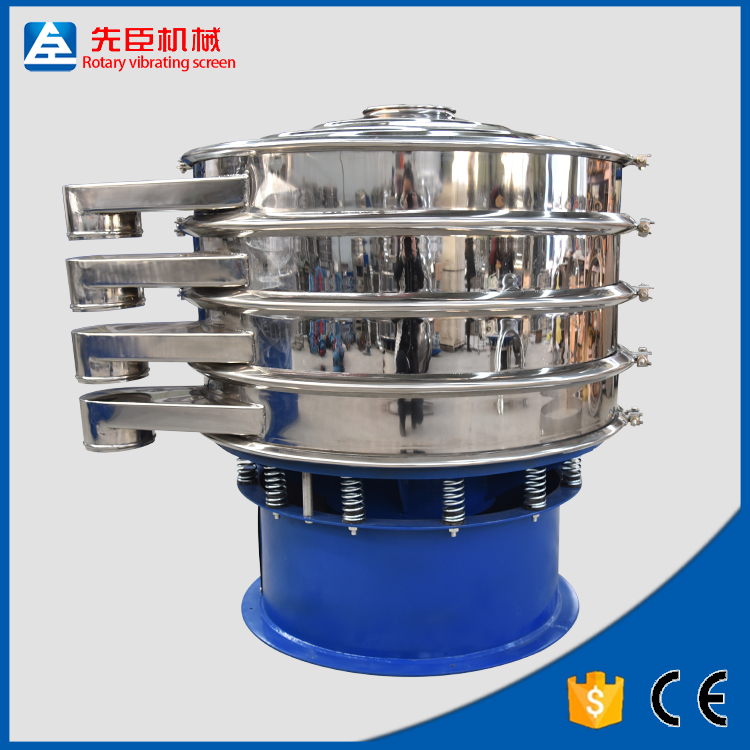

Brand:Xianchen sifter for coating and latex paint
Description:XC series three-D rotary vibrating screen is a special screening equipment with international level, high precision and fine particle on the basis of advanced technology from home and abroad. Its advantages are as follows: fully closed, no dust emission, continuous operation; high screening precision, efficiency and utilization rate of screen; small volume, light in weight, start quickly, low noise; easy operation, convenient maintenance, long service life of screen; the discharge port direction changed along the circumferential direction. The machine is widely used in screening fine powder, micro powder, submicron powder, bar, dry and wet materials.
Origin:China Henan
Model:XC
MOQ:1Sets
FOB:perSets950--4221
Port:Qingdao,Shanghai
Payment Terms:T/T
Supply Ablility:1Sets
Delivery Time:2017-05-27
Packaging Details:Outer packing is plywood case , which is up to the international standards. Inner packing is moisture-proof and water-proof membrane. All of package are wrapped by 0.55mm steel belt to further strengthen .
Product detail:
all carbon steel

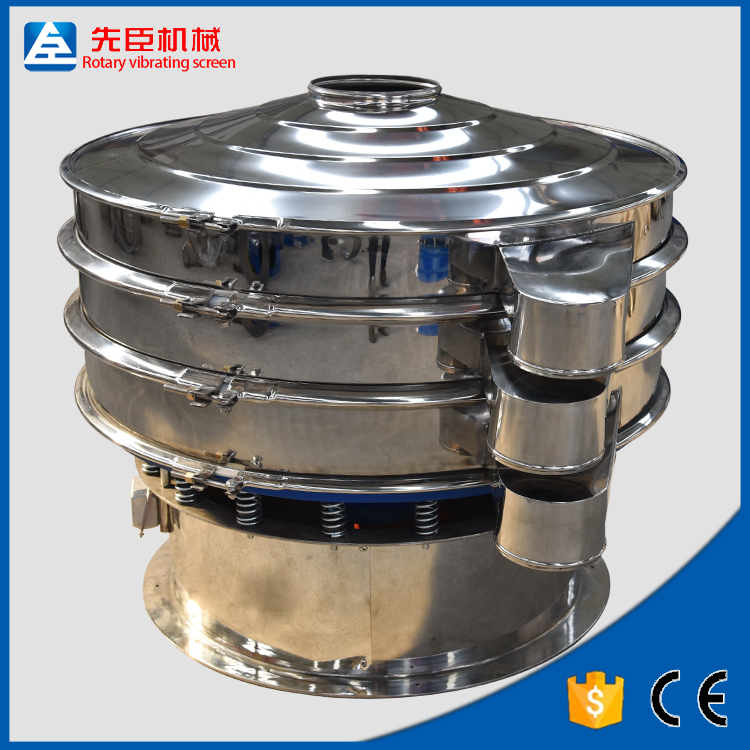

all sus 304/306L(for food industrial or chemical )
contact material is SUS301/316L, other parts are carbon steel
Sieve machine for grading and sorting

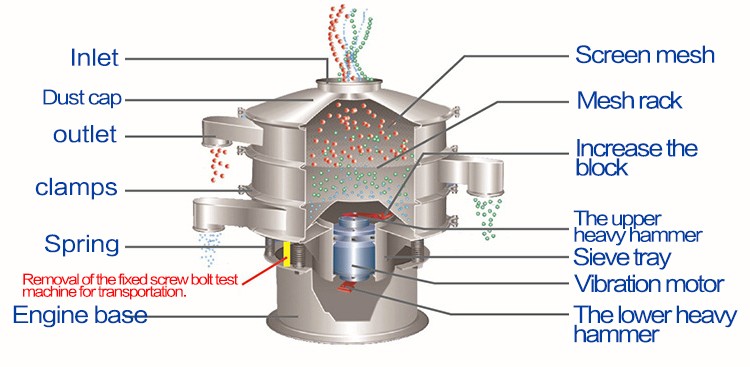

Fundamental principles: rotary motion of the motor change into the horizontal, vertical, and inclined sports (there-D) through the installation of the ends of the weight(imbalance weight) on the vibro motor, and then transfer the motion to the surface of the screen. The trajectories of the material can be changed by changing the phase angle of the weight.
