efficient dewatering machine

Click for original picture
Min dewatering capacity: 10kg-200kg
Max dewatering capacity: 30kg-400kg
Machine Weight: 250kg-2800kg
Fob Price: Discuss personally
Port: shanghai port
Supply Ability: 10000
Payment Terms: delivery withindays since payment
Location: China Jiangsu
  elina    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:Crystal

Description:Place of Origin: Jiangsu, China (Mainland) Brand Name: Crystal Model Number:TG Description: large capacity dehydrator Voltage: 220,380,400,415,440V Usage: Hotel,Hospital,School,factory Door: inter-lock system Capacity: 10-400kg Power Source: Electric / Stream Materials: Stainless steel 304, anti-corrosion Certificate: CE ,ISO9001 Function: Dewatering(dehydrating)

Origin:China Jiangsu

Model:TG

FOB:perSets500--7000USD

Port:shanghai port

Payment Terms:T/T

Supply Ablility:10000Sets

Supply Time:Quarter

Product detail:Main Parameter

Specification Unit TG-500 TG-600 TG-800 TG-1000 TG-1200 TG-1500C
Min dewatering capacity kg 10 20 40 70 180 200
Max dewatering capacity kg 30 50 80 150 200 400
Rolling Container Dimension mm Ф500×260 Ф600×300 Ф800×340 Ф1000×380 Ф1200×480 Ф1500×600
Motor Power kg 1.5 3 4 5.5 7.5 10
Machine dimension mm Ф1000×650 Ф1250×750 Ф1500×800 Ф1800×900 Ф2000×1020 Ф2500×1950
Machine Weight kg 250 450 850 1300 1800 2800
Product advantage
1.The panel and drum all adopt high standard stainless steel 304 to prevent getting rusty or corrosion. no harm to textile, easy to operate, running smoothly ,
   safe and durable
2.This dewatering machine upper part which loads cloth, adopt centrifugal force ,unique shock-absorber, rotating at high speed and dewatering quickly.
3.It was provided with unique shock-absorber, three legs suspended structure,reasonable structure,runing stable, low noise.
4.This product has brakes, brake is stable. The brake system adopts feet braking; smooth braking, easy and flexible to operate.
5.Applications for rotary dewaterer: not only match with industry washing machine.also use in chemical,pharmaceutical industry.
6. It is an idea equipment to reduce labor intensity, raise working efficiency and less energy consumption.
Packaging & Delivery
Packing Detail: Wooden Case Packing of Heavy duty washing machine
Delivery Detail: Shipped in 15 days after payment

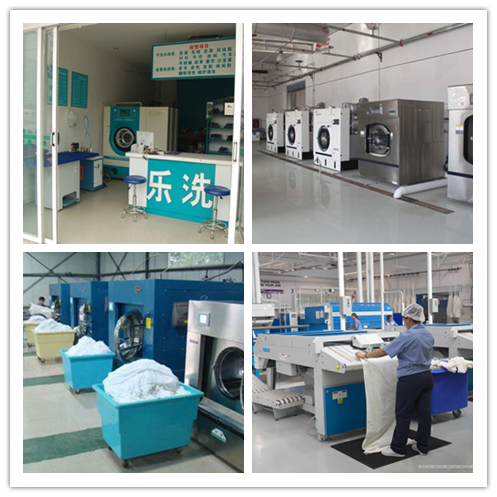

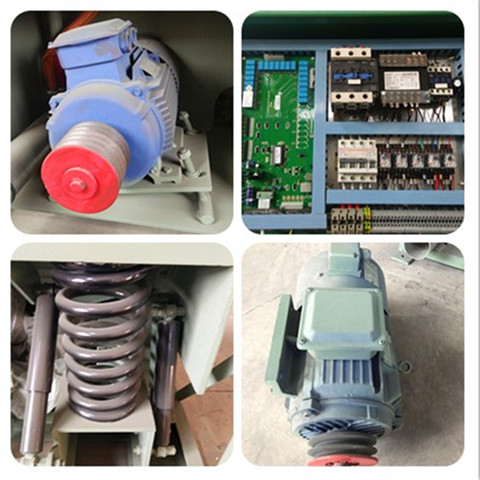

Picture show






































































使用 10
