Brand:Sengong

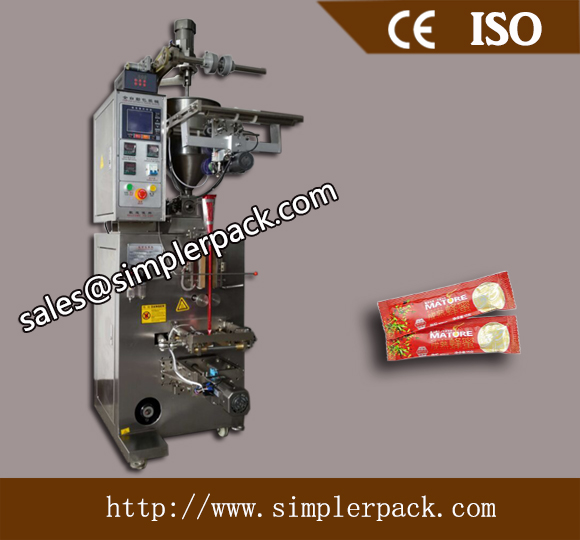

Description:1) Automatic multi-function packaging forming machine; 2) Suitable for kinds of flowing products like ketchup, honey, seasoing oil, sauce etc.; 3) In stick three sides seal bag type; 4) High quality with advance machine parts; 5) All-round process: filing, weighing, sealing, cutting and counting etc. 6) International Approval : ISO9001:2008 7) Quality Approval : Certification of Compliance 8) Experience : 12 Years Manufacturing
Origin:China Fujian
Model:T60AY
MOQ:1Sets
FOB:perSets6000--10000USD
Port:Xiamen
Payment Terms:T/T
Supply Ablility:300Sets
Supply Time:Year
Delivery Time:2016-11-09
Packaging Details:Standard export carton package
Product detail:
//Application: //

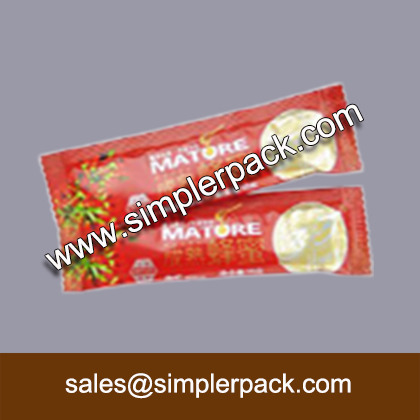

It is used to pack sauce-like and paste substance in food industry like honey, medicine industry and chemicals industry, such as flavor oil, thick broad-bean sauce, honey, tomato ketchup, sesame soy, peanut butter, chili paste, instant noodle eligible oil, oyster sauce, syrup, lotion, etc.
//Features: //
1.The machine can automatically perform bag-forming, measuring, filling, sealing, cutting and counting. If necessary, it can equip with other devices like the batch number printer according to customer’s requirement.
2.The machine adopts advanced PLC microcomputer control system, and installs drive stepper motor to control the bag length, with stable performance, simple adjustment, accurate detection.
3.The machine use intelligent temperature controller, PID regulator, ensuring to keep the temperature error under within below 1 ℃.
4.The machine uses 3 sides sealing.
//Technical data: //
Machine type: General Packing Machine Series
Machine model: T60AY
Machine name: Fully Automatic Liquid Paste Packaging Machine
Filling range: 3-15ml(50-150ml can be customized)
Bag size range: L: 30-150mm, W: 30-180mm
Packing capacity: 30-60bags/min
Sealing method: 3 sides sealing
Power: 220V, 50HZ, 1.9KW
Machine weight: 400KGS
Machine dimension: 900mm*700mm*1700mm(L*W*H)
