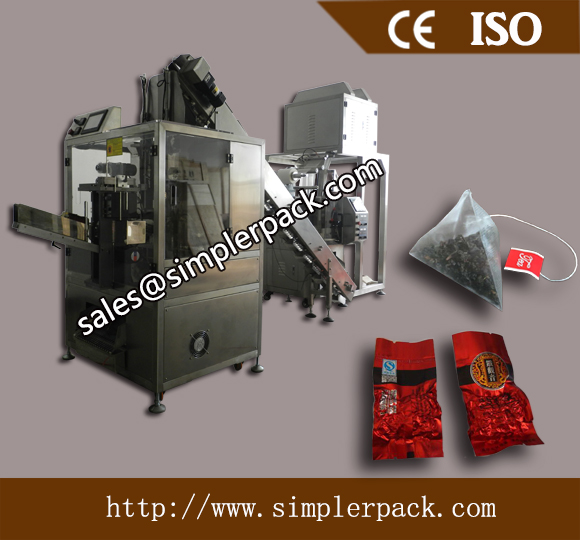

Pyramid Vacuum Packing Machine

Brand:Sengong

Description:1) Automatic multi-function packaging forming machine; 2) Suitable for kinds of drinking materials like teas, herbs and flowers; 3) Vacuum sealing for long time preservation; 4) Nylon(PLA/non-woven) bag materials; with thread and tag;

Origin:China Fujian

Model:C20DX-BK

MOQ:1Sets

FOB:perSets19000--22000USD

Port:Xiamen

Payment Terms:T/T

Supply Ablility:300Sets

Supply Time:Year

Delivery Time:2017-01-17

Packaging Details:Film Wrapping and Standard Export Carton Package

Product detail: //Brief Introduction://

1) Automatic multi-function packaging forming machine;

2) Suitable for all kinds of drinking tea leaves, herbs and flowers;

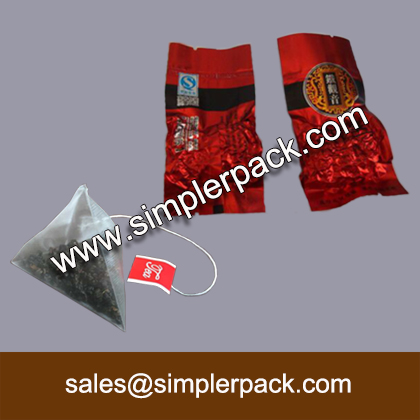

3) Inner pyramid bag, outer vacuum sealing envelope;

4) High quality with international brand-name parts;

5) All-round process: filing, weighing, bag forming, sealing, cutting and counting etc.

6) Manufacturing experience: 12 years

7) Quality Approval: CE, ISO9001:2008



//Application: //

It is suitable for packing kinds of tea in pyramid bag with vacuum sealed outer envelope, such as Darjeeling tea, Assam tea, Ceylon tea, Kung Fu tea, rose tea, jasmine tea, oolong tea, green tea, health tea, herbal tea etc.



//Features: //

1.The feasible package materials of the triangle bag machine is nylon, PLA, non-woven fabric materials imported from Japan, which is non-toxic, non-bacteria, heat-resistant, high-quality and food-grade, conforming to our national safety inspection standard.

2.The machine can uses a unique sealing method - ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.

3.Adopting the bag vacuum packaging to makes its appearance more good-looking and keeps it fresh to a higher quality.



//Technical data: //

Machine type:	Tea Bag Packing Machine Series
Machine model:	C20DX-BK
Machine name:	Automatic Pyramid Tea Bag Packing Machine with Outer Vacuum Envelope
Packing material:	Nylon material imported from Japan, non-woven fabric, 100% biodegradable transparent materials, PET, PLA, Aluminum composite film etc
Measuring method:	Electric scale filling
Filling range:	1-10g/bag, accuracy: ≤ ±0.2g/bag
Packing speed:	20~30 bags/min
Packing roll width:	120, 140, 160(mm)
Sealing length:	50, 60, 70, 80(mm)
Sealing method :	Sealing and cutting by ultrasonic
Qty of sealing device:	2 sets
Air supply:	≥0.6MPa(can be equipped with air compressor)
Motor power:	220V, 50HZ, 3.7KW
Dimension:	6000*2000*2300mm(L*W*H)
Machine weight:	750KG
