Brand:Sengong
Description:1) Automatic multi-function packaging forming machine; 2) Suitable for all kinds of drinking tea leaves, herbs and flowers; 3) Ultrasonic sealing method, Convertible pyramid and flat bag type; 4) Nylon(PLA/non-woven) bag materials; with thread and tag; 5) Good quality with national brand-name parts; 6) All-round process: filing, weighing, bag forming, sealing, cutting and counting etc.
Origin:China Fujian
Model:C20DX
MOQ:1Sets
FOB:perSets10000--15000USD
Port:Xiamen
Payment Terms:T/T
Supply Ablility:300Sets
Supply Time:Year
Delivery Time:2016-10-28
Packaging Details:Standard export carton package
Product detail:
//Application: //
It is suitable for packing drinks granules in pyramid/triangle bag with outer envelop, such as loose leaf tea(like Darjeeling, Assam, Ceylon, Keemun etc.), organic herbal tea, health care tea, flower tea(like rose tea, jasmine tea etc.), scented tea, fruit tea and others, etc.
//Features: //
1. The feasible package materials of the triangle bag machine is nylon, PLA, non-woven fabric materials import ed from Japan, which is non-toxic, non-bacteria, heat-resistant, high-quality and food-grade, conforming to our national safety inspection standard.
2. The machine can uses a unique sealing method - ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
3. The machine can switch the bag shape between pyramid(triangle) and flat(rectangle), and also the sealing method can be switched into back sealing.
4. The machine can be link ed with the outer pouch packing machine.
5. Each electric scale of this machine is independent, each one can be operated alone.
//Technical data: //
Machine type: Tea Bag Packing Machine Series
Machine model: C20DX

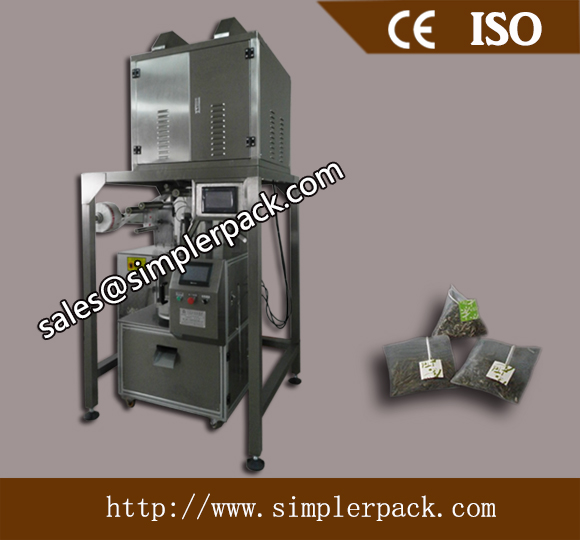

Machine name: Export-oriented Automatic Pyramid Tea Bag Packing Machine with 4 Head Weighs
Packing material: Nylon material import ed from Japan, non-woven fabric, 100% biodegradable transparent materials, PET, PLA, etc
Measuring method: Electric scale
Filling range: 1-10g/bag, accuracy: at most 0.1g/bag
Packing speed: 30~60 bags/min
Packing roll width: 120, 140, 160(mm)
Sealing length: 50, 60, 70, 80(mm)
Sealing method : Ultrasonic sealing and cutting
Qty of sealing device : 2 sets
Air supply: At least 0.6MPa(can be equipped with air compressor)
Motor power: 220V, 50HZ, 1.2KW
Machine dimension: 1800*900*2550mm(L*W*H)
Machine weight: 500KG
//Packaging Machinery Catalog://
1. Tea Bag Packing Machine;
2. Drip Coffee Packaging Machine;
3. Pyramid/Flat Bag Packing Machine;
4. Zip Bag Packing Machine;
5. Stick Bag Packing Machine;
6. Tea Vacuum Packing Machine
7. Powder Packaging Machine;
8. Granules Packaging Machine;
9. Liquid Packaging Machine;
10. Herbs Packaging Machine;
11. Dried Snacks Packaging Machine;
12. Packaging Supporting Machine;
13. Packaging Materials.
