Brand:Sengong
Description:1) Automatic multi function packaging forming machine; 2) Coffee powder/Ground coffee; 3) Ultrasonic sealing; 4) Inner drip bag; Filter paper; with outer envelope; 5) High quality with international brand-name parts. 6) All-round process: filing, weighting, bag forming, sealing, cutting and counting etc. 7) Reserved connector for nitrogen flushing. 8) Quality certificated : CE, ISO9001:2008 9) Manufacturing experience : 12 years
Origin:China Fujian
Model:C19D
MOQ:1Sets
FOB:perSets15000--20000USD
Port:Xiamen
Payment Terms:T/T
Supply Ablility:300Sets
Supply Time:Year
Delivery Time:2016-10-26
Packaging Details:Standard export carton package
Product detail:
//Application: //

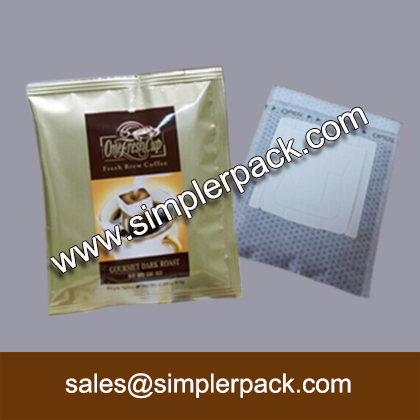

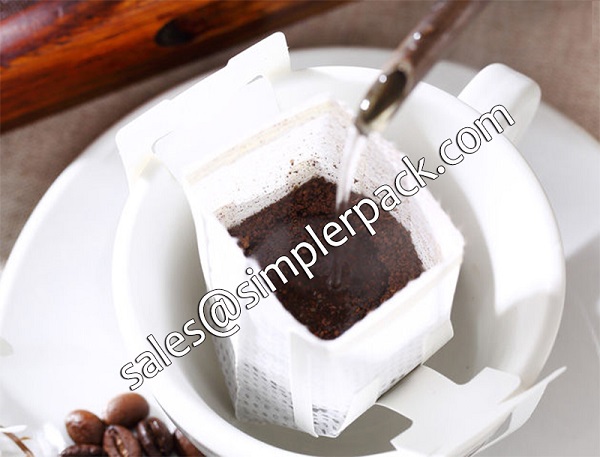

It is suitable for 5 to 15 gram ground coffee powder in drip coffee bag with outer envelop, such as Blue Mountain coffee, Columbia coffee, Brazil coffee, Kenya coffee, etc.
//Features: //
1.Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2.Adopts PID temperature controller for more accurate temperature adjustment.
3.Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.
4. The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders are import ed, ensuring the accuracy and stability of the machines' performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts automatic conveyor system.
8. Options: Date code printer.
//Standard Technical Data: //
Machine type: Drip Coffee Bag Packing Machine Series
Machine model: C19D
Machine name: Ultrasonic Seal Drip Coffee Packing Machine with Outer Envelope
Machine type: Drip Coffee Bag Packing Machine Series
Machine model: C19D
Machine name: Ultrasonic Seal Drip Coffee Packing Machine with Outer Envelope
Bag type: Ultrasonic sealing
Packing material: Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper
Feeding system: Volumetric cup filler
Package range: 5-15g
Inner bag size: L:50-75mm , W:50-90mm
Outer bag size: L:85-120mm , W:75-100mm
Inner bag film width (180mm): Bag size: L90mm*W75mm
Outer bag film width(200mm): Bag size: L120mm*W100mm
Power supply: Single phase, 220V, 50HZ, 3.7KW
Packing speed: 30-60bags/min
Machine weight: 400KGS
Machine dimension: 1200*900*1900mm (L*W*H)
