Solar water pump irrigation

Brand:YAOCHUANG ENERGY

Description:The solar water pump system is composed of solar pump inverter, AC pump, PV array, combiner box, water level switch, distribution box, and mounting bracket. The PV array is composed of many solar panels in series and parallel, and absorbs irradiation from sunlight, and converts into electrical energy(DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV array to AC voltage to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump is driven by a single or three phase induction motor, draws water from well or river, or lakes, then water reserved on tank / pond for irrigation system or other applications. Base on the requirements and installation conditions, different types of pumps will be required. The solar water pump system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment projects. YAOCHUANG solar water pump system is dispensed with battery and that enhance the reliability of the system, and reduce the bill invest.

Origin:China Shanghai

Model:YC-S

MOQ:1Sets

FOB:perSets1800--9600USD

Port:Shanghai

Payment Terms:T/T

Supply Ablility:3Boxes

Supply Time:Week

Delivery Time:2016-07-17

Packaging Details:Carton box and wooden box

Product detail: solar pump system feature

• Reliable solution provider in non-electricity and water deficient area.

• Wide application with all kinds of PV modules and three-phase AC pumps

• IP 65 for outdoors application

• Max. operation temperature 60℃

• GPRS remote monitoring for real time operation status and control on/off

• Excellent performance during cloudy weather with 5% more water output compared to

   competitors

• ROI is only less than 2 years compared to diesel generator

• Full automatic unattended operation with perfect protection functions for long lifespan 25 years

• 1 years warranty for complete system, 10 years for PV modules




Application

YAOCHUANG ENERGY solar water pump is high quality products designed for drinking water supply, livestock watering and irrigation.

YAOCHUANG ENERGY solar water pumps deliver water economically, cleanly and reliably to every user.

YAOCHUANG ENERGY solar water pumps providing simple servicing, ease of access and a low cost.

Benefits

Fast and simple installation

Cost effective spare parts philosophy

Large range of pumps to closely match each application and optimize efficiency

Long life expectancy and proven in service record

MPPT technology to maximize power use from PV modules



If you need a solar water pump system, please inform us

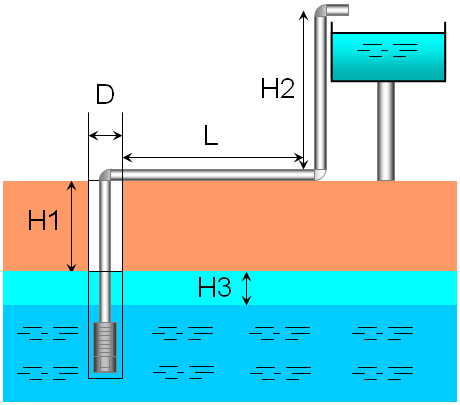

1) The system installation Country _________ City __________
2) daily water supply ________ m3
3) Vertical height from water level to ground H1 (Static Head) ___________ m
4) Vertical height from tank (if any) to ground H2 _________ m
5) Horizontal distance from tank (if any) to water source L __________ m
6) Water level dro when pumping water H3 (Dynamic head) _____________ m
7) Diameter D ________ mm (if it is a borehole)

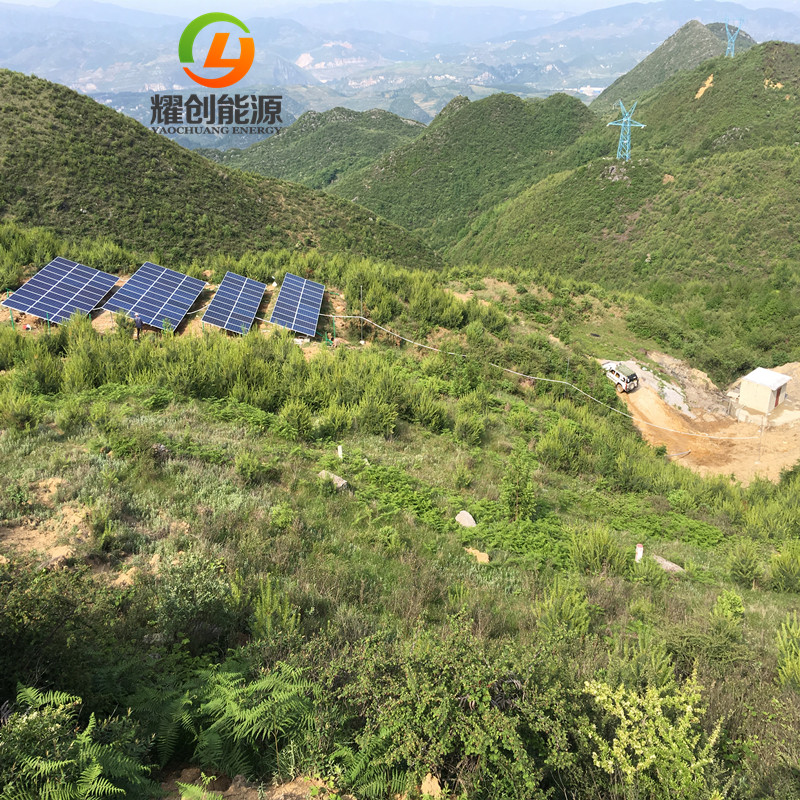

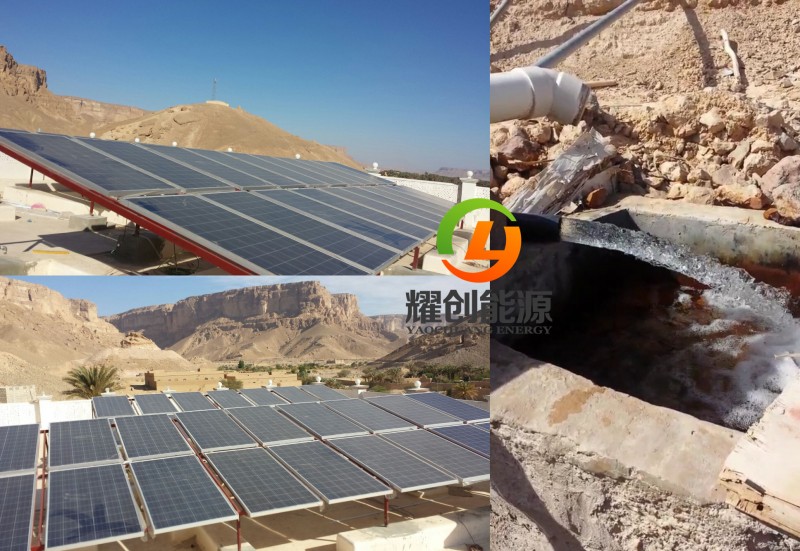

Some project we did display
