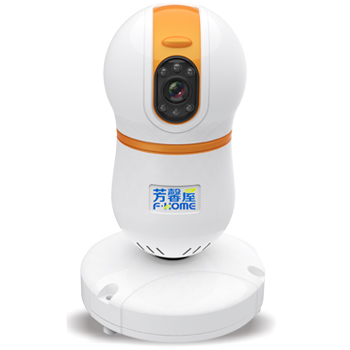

1.3mp 720p network ip camera

Brand:wondertek

Description:WD-PLC3002 family powerline IP camera which integrated powerline communication and streaming media technologies especially designed for Civilian users’HD network monitoring solution, internal PLC communication module meets the demand of Home Plug AV, it turns 220V power line into a intelligent power grid transmission structure which can transfer the HD digital video through power line. Adopt E27 bulb plug and socket design, can be installed in the existing lighting fixtures, ceilings, walls even can be placed on the table directly, no drilling, scaffold and wiring, It is integrated into the decorations naturally by the elegant appearance design and can be moved freely. The product is easy to install, no matter where and when, you just need to enter the account and password at the first time, then you will access to the camera successfully. Matching the monitoring software of our company, you could watching, showing and recording on the computer and It also supports real time monitoring through Web browser.

Model:WD-PLC3002

MOQ:1Sets

FOB:perSets90--130USD

Port:shanghai

Payment Terms:T/T

Supply Ablility:1Sets

Supply Time:Week

Packaging Details:customized box or white

Product detail: WD-PLC3002



Brief introduction

 WD-PLC3002 family powerline IP camera which integrated powerline communication and streaming media technologies especially designed for Civilian users’HD network monitoring solution, internal PLC communication module meets the demand of Home Plug AV, it turns 220V power line into a intelligent power grid transmission structure which can transfer the HD digital video through power line.

Adopt E27 bulb plug and socket design, can be installed in the existing lighting fixtures, ceilings, walls even can be placed on the table directly, no drilling, scaffold and wiring, It is integrated into the decorations naturally by the elegant appearance design and can be moved freely. The product is easy to install, no matter where and when, you just need to enter the account and password at the first time, then you will access to the camera successfully. Matching the monitoring software of our company, you could  watching, showing and recording on the computer and It also supports real time monitoring through Web browser.

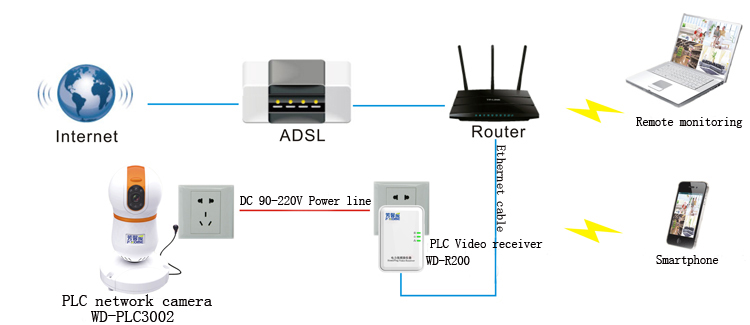

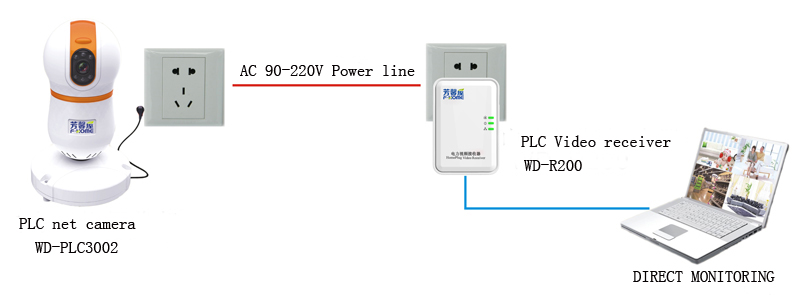

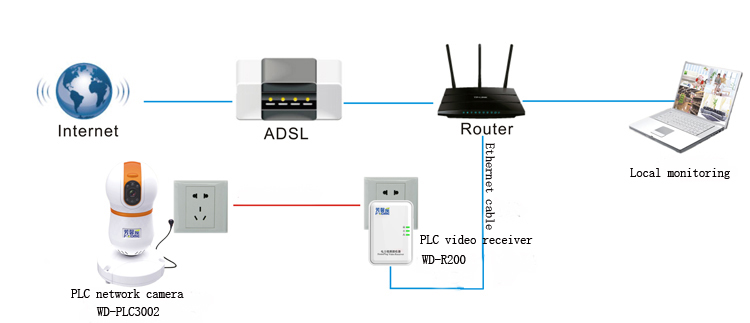

Topological structures of different applications.



Specification

Specification
Item	WD-PLC3002
image sensor	1/2.5', 1.3 Megapixel CMOS censor, with IR cut,filter,
	720P , support CS port
Infrared lamp	8M far away from infrared lamp
Modulation tec.	OFDM
Video compress format	H.264  Main  Profile@Level  3.0
Maximum image rate	1.3MP, 720P
Maximum video rate	1280X720  25 frame
Video rate	0.1-6Mpbs (adjustable)
Protocol standard	HomePlugAV
Working System	support Windows,iPhone,Android,WinCE,
	Linux,Mac iPad ,IE  and etc for simultaneous monitoring，support P2P client ,RTSP media,HTTP Live apple live
	simultaneous output，support remote configuration and management，support the 64 bits dynamic encryption transmission to
	H.264 video streaming
Network Protocol	TCP/IP RTSP HTTP FTP TCP DHCP UDP
Security	Password permission settings
Power source	AC 100V-240V 60/50Hz
Power consumption	＜5W
PLUG	EU, US, UK,
Using environment	Working temperature  -10℃-50℃
	Storage temperature: -20℃-70℃
	working humidity 10%-85% non-condensed state
	Storage humidity 5%-90%  non-condensed state
	within 300meters distance between camera and
	powerline video receiver
	within the same  electric meter and phase line for
	power supply of camera
	and powerline video receiver.
Weight	0.45kg
Certification	FCC、CE、ROHS
Content package	Powerline video receiver
	User construction
	Mounting bracket
	Powerline IP camera
	warranty card

Features

- Built-in PLC for cable free instant installation

-Support NVR

- Supports iPhone / Smart Phone remote video monitoring

- Infrared for Day and Night monitoring

- Special lamp connector design for easy installation

- High definition
