Brand:RST
Description:Layers: 2 Base material: FR4 Copper thickness: 1oz Board thickness: 1.6mm Min. hole size: 0.45mm Min. line width: 3 mils Min. line spacing: 3 mils Surface finishing: HASL
Model:RSTPCB0004
MOQ:10Square Meters
FOB:per70--150
Port:Shenzhen
Payment Terms:Western Union
Supply Time:Day
Delivery Time:2015-12-31

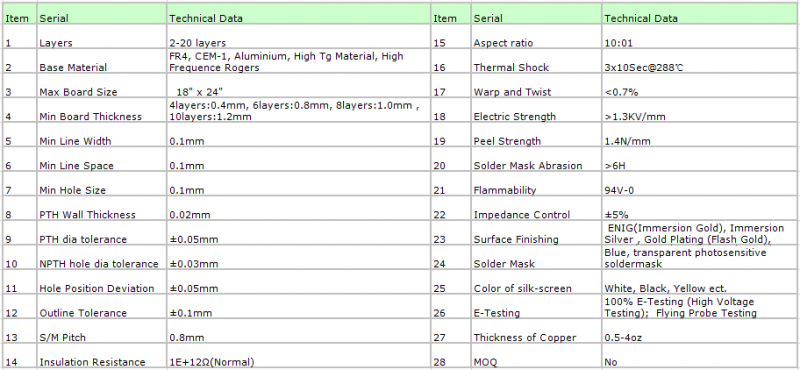

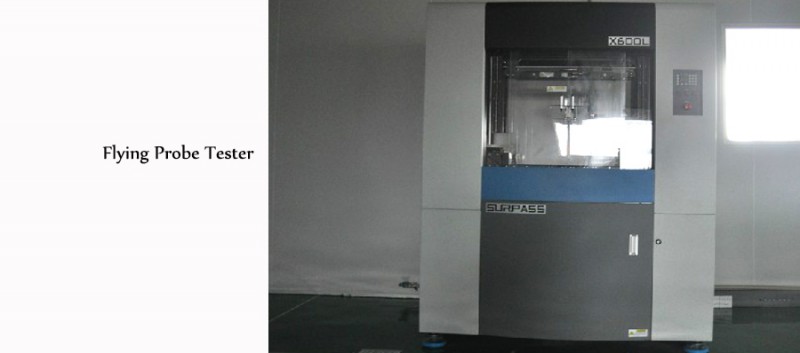

Packaging Details:Available specifications: Base materials: FR4, aluminum, FPC and copper Copper thickness: 0.5oz (minimum) Copper thickness: 4oz (minimum) Board thickness: 0.2mm (minimum) Board thickness: 3.2mm (maximum) Surface finishing: HAL, ENIG, OSP, gold finger and tin chemistry Possible soldermask colors: green, black, white, yellow, blue, red and more Board dimensions: 600 x 1,000mm Hole diameter: 0.2mm (minimum) Line width: 0.075mm (minimum) Line spacing: 0.075mm (minimum) SMT pitch: 30° (minimum) Annular ring: 0.05mm (minimum) Aspect ratio: 11:01 Surface/hole plating tolerance: Hole tolerance (PTH): 0.25mm Hole tolerance (NPTH): 0.15mm SM tolerance (LPI): Dimension Electrically test: supported With RoHS Directive-compliant Possibility of SMT device mounting: supported
Product detail: Available specifications:
Pls kindly contact Jessica whenever you have the need of pcb.
