Brand:BEIBEN

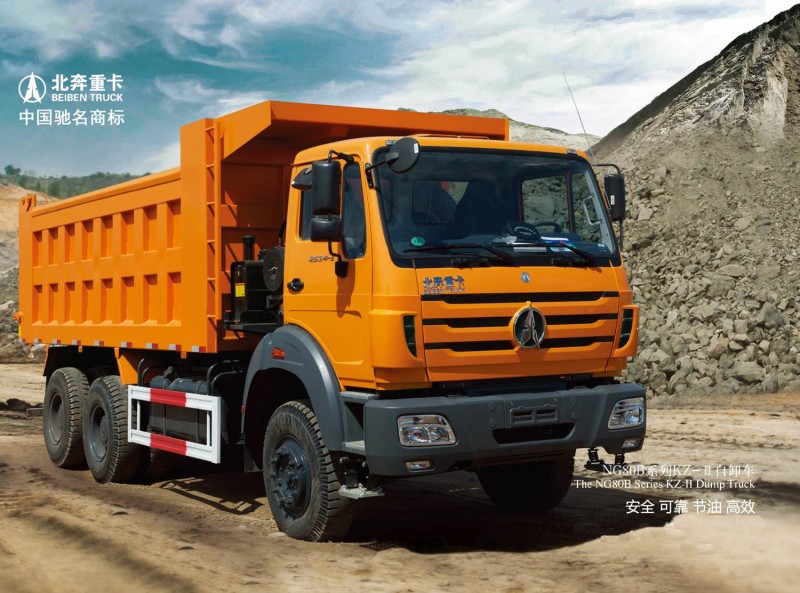

Description:This truck is designed for mining /construction use. The maximum capacity is 30 tons and 19.3 cubic. With bottom 8 and side 6 carriage box, the truck is suitable to transport most of the goods such as mineral, sand, construction garbage etc. You can also choose thinner carriage for quarry. The 12.00R20 tubeless tires are the most cost-effective and perfect for mining environment. Other sizes and radial/nylon tires are also available.
Origin:China Inner Mongolia
Model:ND32601B41
MOQ:1Unit/Units
FOB:perUnit/Units41900--42000USD
Port:main port in China
Payment Terms:T/T
Supply Ablility:600Unit/Units
Supply Time:Month
Packaging Details:nude, wax is optional
Product detail: SPECIFICATIONS:
|
SPECIFICATIONS FOR DUMP TRUCK |
|||
|
Vehicle Specifications |
Model |
ND32601B41 |
|
|
Traction 4X2,6X4,8X4 |
6X4 |
||
|
Power |
340HP |
||
|
Weight Parameter |
Complete Vehicle Kerb Mass(kg) |
12100 |
|
|
Maximum authorized total mass (kg) |
26000 |
||
|
Dimension Parameter |
External Dimensions(mm) |
Length (mm) |
8750/8850 |
|
Width(mm) |
2500 |
||
|
Height(mm) |
3430/3350 |
||
|
wheelbase(mm) |
4100+1450 |
||
|
Internal cargo Sizes |
Length (mm) |
6000/62000 |
|
|
Width (mm) |
2300 |
||
|
Height (mm) |
1500 |
||
|
Performance Parameter |
Maximum Speed(km/h) |
75 |
|
|
Maximum Grade ability(%) |
35 |
||
|
Turning diameter(m) |
16 |
||
|
Recommended Configuration |
Engine |
Engine Type |
WD615.34 |
|
Rated power(kW)/Rev(r/min) |
250/2200 |
||
|
Horse power |
340HP |
||
|
Torque(N*m)/Rev(r/min) |
1500/1400-1600 |
||
|
Transmission |
9JS150A |
||
|
Clutch(mm) |
430 |
||
|
Gearbox |
9 forward gears/ 2 reverse gears |
||
|
Axle |
Front Axle |
BENZ-7.5 |
|
|
Rear Axle |
BENZ-13 |
||
|
Axle load-bearing |
Front axle |
7500 |
|
|
|
Rear axle |
13000 |
|
|
Fuel Tank(L) |
400 |
||
|
Track(mm) |
1995/1800/1800;2045/1872/1872 |
||
|
Front overhang/rear overhang(mm) |
1410/1790,1890 |
||
|
Type |
12.00R20 |
||
|
Cabin |
Sleeper |
none |
|
|
OTHER |
Engine horse power |
290hp,330hp,340hp and 360hp,380hp,420hp is optional |
|
|
Tyre |
nylon,radial and tubeless is optional |
||
|
ABS |
optional |
||
|
COLOR |
optional |
||
