Brand:Spring Impact Hammer
Description:IK01 0.14J Spring Impact Hammer
Origin:China Guangdong
Model:CX-T01
MOQ:1 PCSSets
FOB:perNegotiation--USD
Port:Shenzhen
Payment Terms:T/T
Supply Time:Week
Delivery Time:2015-11-05

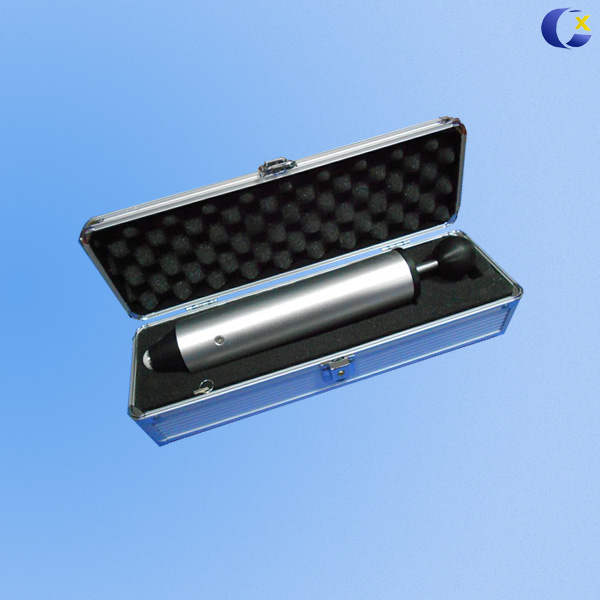

Packaging Details:standard packingeach in a silver box
Product detail:
IEC60068-2-75 0.14J Spring Impact Hammer Spring Hammer for Impact test
Standard of IEC 60068-2-75, GB/T2423.55-2006, GB4706.1,GB8898 GB7000, IEC884 ,UL1244 ETC
0.14J Spring Hammer
Required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC, EN, UL, CSA and other international Standards.
Types:
0.14J Spring Hammer
Required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC, EN, UL, CSA and other international Standards.
Types:
| IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
| 0.14J | 0.2J | 0.35J | 0.5J | 0.7J | 1J | 2J | 5J | 10J | 20J |
Technical Parameters:
| Length | 211mm |
| Weight | 1250g |
| OD | 50mm |
| Hammer head Weight | 60g |
| Hammer radius | 10mm |
| The release force of impact | <10N |
| Single spring impact hammer | 0.14J,0.20J,0.35J,0.50J,0.70J,1.0J 2.0J Selection |
|
Universal spring impact hammer(adjustable imapct hammer) |
0.14, 0.20,0.35,0.50,0.70 and 1J |
Product Details
- Body: Includes release mechanism and striking element guide, mass 1250 g.
- Striking element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g
- Release Cone: mass 60 g, 10N release force
- Impact Force: Single force and adjustable models available in impact energies of 0.14,0.20, 0.35, 0.50, 0.70 and 1.0 J,2.0J
- Custom padded carrying case included.
- Model:CX-T1:Single impact force models(0.2J,0.35J,0.5J,0.7J,1J,select)
- Model:CX-T2:Impact force:2J±0.1J
- Model:CX-T6:Adjustable models available in impact energies of 0.14J,0.20,0.35,0.50,0.70 and 1.0J
