Brand:HT Italia

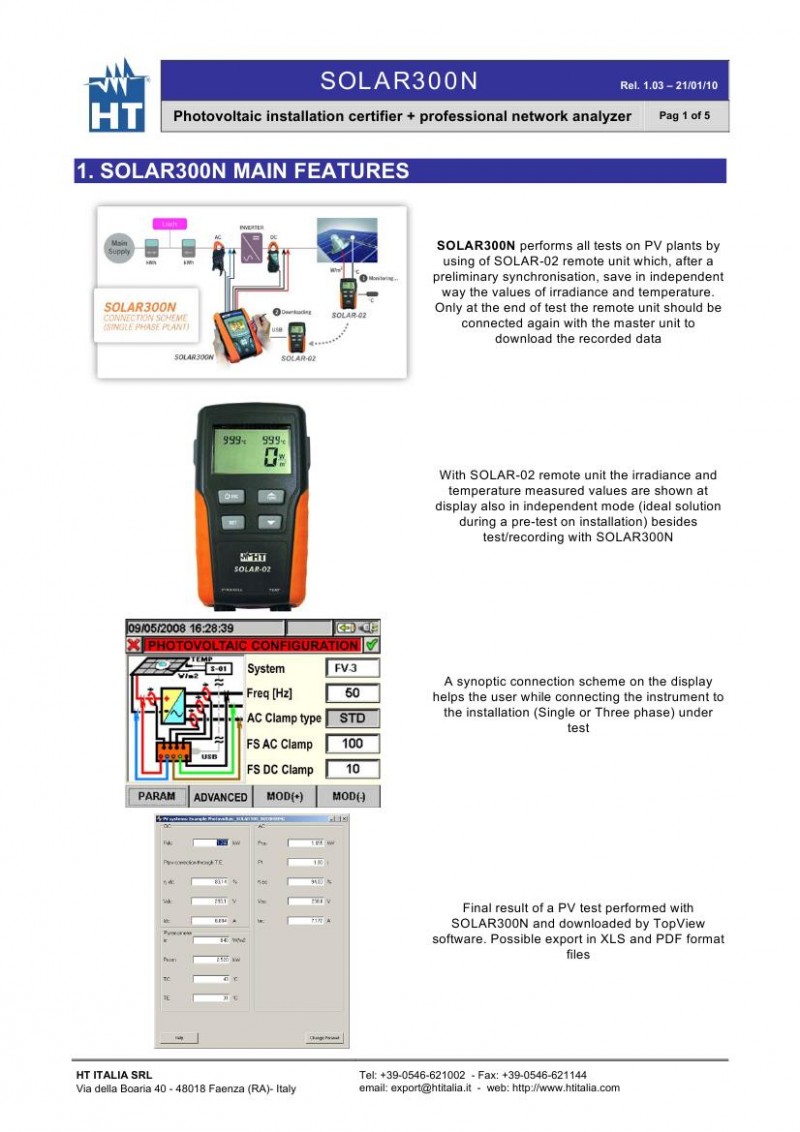

Description:SOLAR300N allows carrying out all tests required for the verification of the efficiency of single-phase and three-phase photovoltaic systems. Testing photovoltaic systems requires contemporarily measuring environmental parameters (incident irradiation of modules, temperature of environment and modules) and electric parameters (continuous power, alternating power, etc.). Typically, modules and inverter can be positioned even at several tens of meters of distance, thus forcing the operator to carry out measurements in different places far from each other at the same time. To carry out these operations, connections by means of long cables or (wireless) radio connections could be necessary, but both these solutions are not acceptable. Cables could hamper the operator’s movements or be a hindrance, while radio waves would be attenuated by floors, reinforced concrete or metal structures, thus making communication impossible. In order to avoid the above-mentioned problems and to carry out measurements with the necessary contemporaneity, SOLAR300N is provided with a remote unit, synchronized with the main unit. The remote unit is positioned next to the photovoltaic modules and it is connected to the probes for measuring environmental parameters (irradiation and temperature). SOLAR300N is connected upstream and downstream of the inverter in order to acquire the electric parameters (continuous power and alternating power). The synchronization between the two units guarantees the necessary contemporaneity of measurements, the two separate and independent units make measurements comfortable and safe. SOLAR300N is also a powerful instrument for the complete analysis of mains quality in compliance with standard EN50160 (harmonic analysis, analysis of voltage anomalies, Flicker, unbalance, etc.). The management software TopView also provides the possibility of creating professional reports, which can be customized by adding the company’s logo, the customer’s data, comments, etc.
Origin:Other country Italy
Model:SOALR 300N
Payment Terms:T/T
Packaging Details:Carton boxes
Product detail:
- DC/AC TRMS (single-phase and three-phase) current measurement
- DC/AC (single-phase and three-phase) power measurement
- AC (single-phase and three-phase) energy measurement
- DC Measurement of power factor (cosphi) single-phase and three-phase
- Measurement of solar irradiation [W/m2]
- Measurement of temperature by means of probe PT1000
- Recording of voltage and current harmonics up to the 49° order
- Recording of voltage anomalies (dips, peaks)
- Flicker analysis in compliance with standard EN50160
- Recording of starting currents with a resolution of 10ms
- Recording of voltage fast transients (spikes) with a resolution of 5us
- Complete analysis of mains quality in compliance with standard EN50160
- Numerical and graphical display of each quantity
- Recalling results on the display
- TFT colour display with touch screen
- Power supply with rechargeable Li-ION battery
- Memory extension by means of compact flash (CF card)
- Data transfer to external USB memory (memory stick)
- USB port for PC connection
- Help on line at display
Codmetel : HV00300N
- SOLAR-02 : Remote unit for irradiance/temperature
- KIT800 : Set of 5 cables + 5 alligator clips
- HT4004N : Transducer clamp 10-100A DC
- HT4005K : Rigid clamp 200A AC, diameter 40mm, 3 pcs
- HT304N : Reference cell for radiation measurements
- PT300N : PT1000 probe for cell temperature measurement
- A0055 : External adapter AC/DC recharging battery
- YABAT0003HT0 : Li-ION rechargeable battery
- PT400 : Touch pen
- TOPVIEW2007 : Windows software + USB cable C2007
- VA400 : Rigid carrying case
- User manual on CD-ROM
- Quick reference guide
- ISO9000 calibration certificate
- Alligator clip black, 4 pcs
- HT96U : Rigid clamp 1-100-1000A AC, diameter 54mm
- HT97U : Rigid clamp 10-100-1000A AC, diameter 54mm
- HTFLEX33D : Flex clamp 3000A, for use as analyzer only
- HT98U : Rigid clamp 1000A DC, diameter 50mm
- HP30D1 : Rigid clamp with wide jaws up to 1000A DC
- HT4004P : Rigid clamp 10-100A DC, only for use with MPP300
- HP30C3 : Rigid clamp 3000A AC, diameter 70mm
- HP30C2 : Rigid clamp 200-2000A AC, diameter 70mm
- HT903 : Accessory for connection to external CTs
- SP-0400 : Set of straps for use of meter on neck
- 606-IECN : Connector with magnetic test lead
- ACON3F4M : Adapter for connection of DC clamps to MPP300
CE MARK
EN50160
IEC/EN61000-4-15
IEC/EN61000-4-30 Class B
IEC/EN61187
LVD 2006/95/CE Directive
