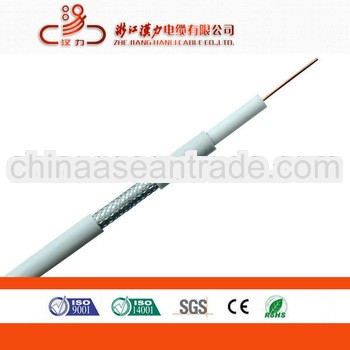

Hot Sell Competitive Price coaxial cable rg6 sat tv cable

Click for original picture
Fob Price: 0.10 USD/
MOQ: 10
Payment Terms: delivery withindays since payment
Location: China
  Mr. Jacob Chen    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:aa

Product detail:





Standard Specification :

1.02mm CCS + 4.7mm FPE + AL/ pet Foil + 64*0.12mm Al Braiding +6.8mm PVC



Electrical Characteristics :

1) Characteristics Impedance:                          75+/- 3 Ohms

2) Capacitance Conductor to Shield:               53.1 pF/m

3) Velocity of Propagation :                                 82%

4) Delay:                                                                 4.065 ns/m

5) Min.Structural Return Loss (5-3000MHz) :  20 dB

6) Max. Attenuation :

@ Frequency (MHz)

dB/100 ft (MAX.)

dB/100 meters(MAX)

5 MHz

0.58 dB

1.90 dB

55 MHz

1.60 dB

5.25 dB

211 MHz

1.95 dB

10.00 dB

250 MHz

2.85 dB

10.82 dB

270 MHz

3.05 dB

11.04 dB

300 MHz

3.30 dB

11.64 dB

330 MHz

3.55 dB

12.26 dB

350 MHz

3.85 dB

12.63 dB

400 MHz

4.15 dB

13.61 dB

450 MHz

4.40 dB

14.43 dB

500 MHz

4.66 dB

15.29 dB

550 MHz

4.90 dB

16.08 dB

600 MHz

5.10 dB

16.73 dB

750 MHz

5.65 dB

18.54 dB

870 MHz

6.10 dB

20.04 dB

1000 MHz

6.55 dB

21.46 dB

1300 MHz

7.46 dB

24.49 dB

1450 MHz

7.89 dB

25.89 dB

1750 MHz

8.74 dB

28.67 dB

2150 MHz

9.69 dB

31.79 dB

2600 MHz

10.76 dB

35.30 dB

2832 MHz

11.55 dB

37.74 dB

3000 MHz

11.84 dB

38.84 dB

Application :

1. Coaxial cable for  CATV,CCTV systems

2. Plus  F  as connection cable

3. For satellite systems



Product Procedure



Packing







Transportation



1). All available shipping ways could be applied, by courier,air or sea .

2). Appointed shipping company or our own forwarders all could be used in  shipment .

3). Full -way tracking the cargos for you before the goods arrive .



QC Team



QC team consists of professional people to ensure 100% products high quality.





Company View







Exhibitions



Beijing CCBN & HONGKONG Electric & Dubai & Singapore  & South Africa
