NMRV040 worm gearbox

Brand:aa

Product detail:

engrenagem redutor de velocidade

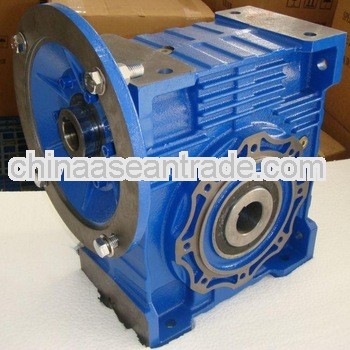

RV Worm Gearbox (Reductor)



We are factory, our products are Worm Gearbox.



Kindly, if you need Gearbox, pls send the Model, Ratio and Quantity of the Gearbox to me, then, I will give you the best offer.



RV series worm gearbox:

1) High quality aluminum alloy die cast gearbox

2) High accuracy worm gear and worm shaft

3) Less noise and lower temperature increase

4) Easy mounting and linking, high efficiency

5) Power: 0.06-16 kW

6) Output torque: 1.8-1,596 N.m

    Output speed: 14-280rpm;

    If Double Gearbox, output speed: 0.3-14rpm.

7) Transmission rate: 5-100

8)Inner packing: carton; Outer packing: Plywood case.

9)model number: RV 030,040,050,063,075,090,110,130, 150



Material for RV gearbox:

Worm wheel:  Nodular cast iron and bronze

Worm shaft:  20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mm

Housing: aluminum with oven painting for RV030-090, cast iron for RV110 and 150

Color: silver or blue



Input flange size for your choose:



Detail Specifications of the Gearbox, as following:









  MS three phase motor, as following:







  ML single phase motor, as following:
