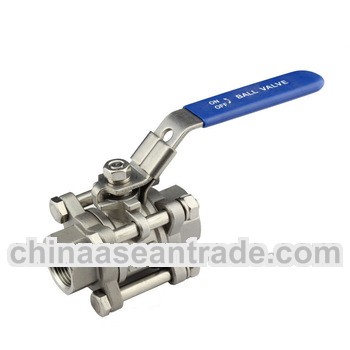

1-pc stainless steel ball valve full
Port,1000wog,PN63,150LB/300LB,CF8M/CF8,SS316/SS304,1.4408/1.4301
Materials of main parts:
Valve body: WCB ,CF8, CF8M
Stem: 304 316
BALL: 304 316
Packing: PTFE.
Sealing: PTFE
Stainless Steel Ball Valve,with threaded ends ,BSPT,NPT .DIN259,DIN2999
Applicable media: Water Oil ,Steam, Nitric acid, Acetic acid.
Nominal pressure: 1.6. 2.5. 4.0. 6.4Mpa
Main size: 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2"2" 2-1/2" 3" 4"
2.FEATURES:
Blow-out Proof Stem
Investment Casting Body & Cap
Pressure Blance Hole in Ball Slot
Full Port
Various Thread Standard Available
Locking Device Available
3.STANDARD:
Design: ASME B16.34,API608
Wall Thickness:ASME B16.34,GB12224
Face to Face:DIN3202-M3
Pipe Thread: ANSI B 1.20.1
BS 21/2779,DIN 259/2999,ISO 228
Inspection & Testing:API 598
3. Size:
| DN | L | ød | H | E | L1 | øS1 | LB | øB1 | øB2 | HEX.B | END |
| 1/4" | 75 | 10.5 | 52 | 105 | 10 | 14.2 | 72 | 10.5 | 18 | 19 | NPT |
| 3/8" | 75 | 12.5 | 54 | 105 | 10 | 17.8 | 72 | 12.5 | 18 | 22 | BSPT |
| 1/2" | 75 | 15 | 60 | 125 | 10 | 21.8 | 75 | 15 | 22 | 27 | BSP |
| 3/4" | 80 | 20 | 66 | 125 | 13 | 27.3 | 90 | 20 | 28 | 32 | DIN |
| 1" | 90 | 25 | 75 | 150 | 13 | 34 | 100 | 25 | 34 | 40 | PT |
| 1-1/4" | 110 | 32 | 80 | 150 | 16 | 42.8 | 110 | 32 | 43 | 50 | etc… |
| 1-1/2" | 120 | 38 | 91 | 185 | 16 | 48.9 | 125 | 38 | 50 | 55 | |
| 2" | 140 | 50 | 95 | 185 | 17 | 61.4 | 150 | 48 | 62 | 68.5 | |
| 2-1/2" | 185 | 65 | 135 | 250 | 17 | 74 | 190 | 65 | 76.5 | 85 | |
| 3" | 205 | 80 | 150 | 250 | 17 | 90 | 220 | 78 | 92 | 100 | |
| 4" | 228 | 100 | 173 | 250 | 20 | 115.4 | 270 | 100 | 115 | 123 |
|
