Brand:aa
Product detail:

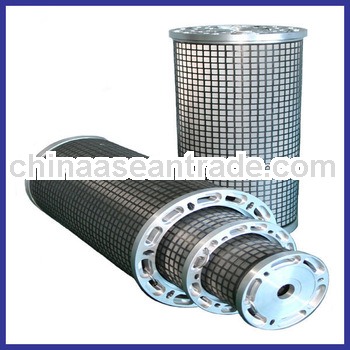

activated carbon filter cartridge
activated carbon filter cartridge
1.high filtrating precision,big flow
2.small differential pressure
3.non-toxic
4.ISO9000
activated carbon filter cartridge
Use cope | pure water, electroplating line, printed circuit board, coating, solvents, detergent, medicine water, oral liquid, pharmaceutical injection, beverage, wine .etc
|
Function | It can effective move organic matter in liquid , particulate , rust , residual chlorine , peculiar smell . etc |
activated carbon filter cartridge
Structure and material | |
Part name | Material |
End cover | plastic |
Inner tube | Plastic |
Filter medium | Activated carbon |
about us :activated carbon filter cartridge
Our company was founded in 1987 , has done in filtering field for more than 25 years , major products are filters and filter cartridges , used in all kinds of industry . |
activated carbon filter cartridge
Name | Model | Length(mm) | Filtrating precision(um) | OD (mm) | ID (mm) | Form of port | Working temperature(°C) | Nominal pressure(MPa) | Pressure loss (MPa) | |
Initial | Max | |||||||||
Activated carbon filter element | HTLX-*×10 | 10 20 30 40 | 1-10 | 65 | 30 | Insert type , flat sub type | 60 | 0.7 | No more than 0.1 | 0.4 |
HTLX-*×20 | ||||||||||
HTLX-*×30 | ||||||||||
HTLX-*×40 | ||||||||||
