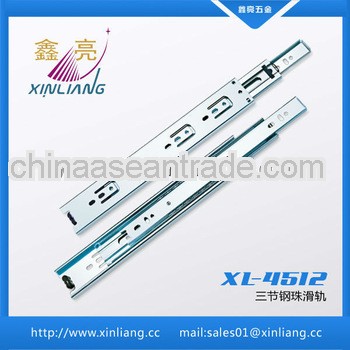

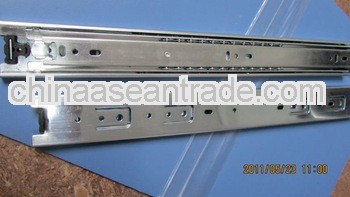

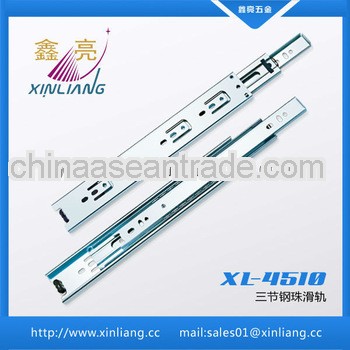

45mm 3-fold drawer runner

Brand:aa

Product detail:



45mm 3-fold Ball Bearing Slide





• Width:45MM
• Thickness:12*1.2*1.2mm
• Length:10"-36"





 Have different thickness for your reference.





Width	Thickness
45mm	0.9mm×0.9mm×1.0mm
	1.0mm×1.0mm×1.0mm
	1.0mm×1.0mm×1.2mm
	1.1mm×1.1mm×1.3mm
	1.2mm×1.2mm×1.2mm
	1.2mm×1.2mm×1.5mm





•  Finishing:blue zinc-plated,black zinc-plated,color zinc- plated
• Material:cold-rolled steel
• Type:full extension drawer slide





Mounting	Side, for frame and frameless
Load capacity	45kgs/450mm
Finish	Zinc plated ,Black ,yellow zinc-plated
material	Cold-rolled steel
sizes	10”-36”
Thickness	1.2/1.2/1.5mm;1.1/1.1/1.4mm;1.0/1.0/1.2mm
Optional balls	1,2,3,4 balls











We have 1,2,3,4 balls for your option.



If you have any questions,pls do not hesitate to contact with us.
