Mobile Trash Compactor

Brand:aa

Product detail:

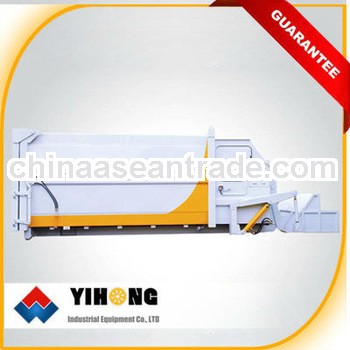

Mobile Trash Compactor:



Mobile trash compactor produced by our company possesses feature of large trash treatment capacity, high treatment efficiency, noiselessness, and no stink, especially powerful during peek time. This equipment asks for low requirement of transferring location, trash collection and transferring can be processed only easy civil engineering needed. Compression equipment and trash transfer bin mutually work together, convenient to compress, dump. It not only reduces transport capacity waste, but also relieves transportation pressure, meeting the demand of trash transferring at easy location lately. In the meanwhile, compressing box has excellent sealing performance, which can solve the problems arising from transportation, and short-time storage is available.



Mobile Trash Compactor Features:



1. Domestically leading technology, easy control, and reliable operation, low noise, beautiful and harmonious.
2. Machine and box makes one, flexible transferring mechanism ensuring very first time treatment at transferring station.
3. Machine and box makes one, flexible transferring mechanism ensuring very first time treatment at transferring station.
4. Control mode falls into two as energy-saving mode and normal mode. Energy-saving mode used when trash quantity is not much, compressing push shovel moves only once; Compressing push shovel can move 5 times back and forth when trash quantity is much by using normal mode. The push shovel movement order is controlled through pressure switch.
5. Hydraulic system uses single motor& pump structure, rear door locking oil cylinder calls for hydraulic lock design to avoid oil cylinder becoming loose.
6. There are two control systems, one is the operation cabinet fixed on compressor, the other is remote-controller, designed to reduce wiring harness winding, beautifully outlined. The two can be controlled separately.
7. Small floor area, low facility construction investment, flexible and convenient, simple mate equipment and low operation cost.



Mobile Trash Compactor Technical Parameters:



Model	YHS2000	YHS1700	YHS1500	YHS1000
GW	6500 kg	5800 kg	5000 kg	3500 kg
Garbage bin capacity	20 m3	17 m3	15 m3	10 m3
Ability to deal with rubbish	80 m3/h	70 m3/h	60 m3/h	50 m3/h
Max. waste loading capacity	14 t	12.5 t	11 t	7 t
System working pressure	21 Mpa	21 Mpa	21 Mpa	21 Mpa
Dimension L×W×H	6300×2440×2400 mm	59×2440×2400 mm	5400×2440×2400 mm	4700×2000×2140 mm
