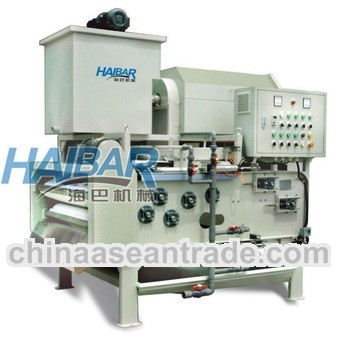

Belt Filter Press for Wastewater Treatment Plant HTA-1500L

Brand:aa

Product detail:

Belt Filter Press for Wastewater Treatment Plant HTA-1500L



A Belt Filter Press is a biosolids/sludge dewatering device that applies mechanical pressure to a chemically conditioned slurry,which is sandwiched between two tensioned belts, by passing those belts through a serpentine of different diameter rolls.which can be useful for wastewater treatment.



Specifications:



belt width: 1500 mm

treating capacity: 9 ~ 17 m3/hr

inlet consistency: S.S 1.5% ~ 2.5%

dried sludge: 143 ~ 233  kg/hr

outlet water content rate: 66% ~84%

power consumption: 1.5 kw

external dimension: L X WX H: 2900 X 2130 X 2800 mm

reference weight: 2150 kg



Application references:

1. Paper & pulp sewage;

2. Printing/dyeing sewage;

3. Leather & tannery sewage;

4. Electro-plating sewage;

5. Metal-processing sewage;

6. Stone & mine sewage;

7. Food & beverage sewage;

8. Livestock sewage;

9. Butchery sewage;

10. City mixed raw sewage;

11. Excretion sewage;

12. Water purifying sewage ;

13. Brewery processing wastewater.

14. Pickling sewage



Features

1. Press cake with the lowest moisture content;

2. Wide range application;

3. Advanced slurry distribution unit;

4. Reliable and stable operation;

5. Longer service time;

6. Low energy consumption;

7. Anti-abrasion and anti-corrosion protection;

8. Stainless steel SUS 304 construction, TIG reinforcing welding structure design;

9. Easy to operate and maintenance;

10. Compact structure, small space to install;

11. Automatic operation, reducing labor cost and intensity.



Specifications:





Model		HTA-1500L
Belt Width (mm)		1500
Inlet consistency ( 1.5%-2.5%)	Treating capacity (m3/hr)	9.0~17.0
	Dried Sludge  (kg/hr)	143~233
Water content rate (%)		66~84
Power consumption  (HP)	Driving motor	1
	Agitating motor	1/2
	Drum Thickener	1/2
Dimensions (Reference) (mm)	Length	2900
	Width	2130
	Height	2800
Reference Weight (kg)		2150
