Brand:aa
Product detail:

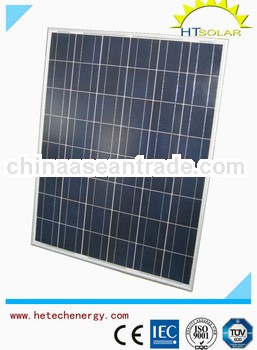

Chinese solar panels price
We supply Chinese solar panels price with good price
Electrical Performance
| Peak Power | 195W |
| Maximum Power Voltage (VMP) | 23.02V |
| Maximum Power Current (IMP) | 8.47A |
| Short Circuit Current (ISC) | 9.28A |
| Open Circuit Voltage (VOC) | 28.12V |
| Cell Efficiency | 16.69% |
| Module Efficiency | 14.88% |
Working Conditions&Parameters
Maximum System Voltage(V) | 1000V |
Power Tolerance | 0~+3% |
Cell Dimension | 156*156mm |
Number of Cells/Layout | 48pcs./8*6 |
NOCT Cell | 46 ± 2°c |
Temperature Coefficient ISC(%) | +0.04/±0.015%/ °c |
Temperature Coefficient VOC(%) | -0.3/±0.02%/ °c |
Temperature Coefficient PM(%) | -0.45/±0.05%/ °c |
Temperature Coefficient IM(%) | +0.04%/ °c |
Temperature Coefficient VM(%) | -0.32/±0.02%/ °c |
Operating Temperatures | -40 °c ~+90 °c |
Surface Pressure | 60m/s(200kg/m²) more..Other products from this supplier
