advanced technology for recycling waste tire to diesel

Brand:aa

Product detail:

Waste to Oil Energy



Day be day, waste tire, waste plastic, waste rubber, waste oil cause serious environmental pollution.

Most people have no idea about how to dispose of these house waste or industry waste.

Burning, landfill, actually are not the right way to solve the problem.



We have the honor to introduce you the green technology for waste recycling.

Waste tire recycling machine, waste plastic recycling machine, also named as pyrolysis equipment.

Waste engine oil recycling machine, oil residue recycling machine, also named as distillation equipment.

After being processed, all the tire or plastic will be fully recycled, most percent are turned into fuel oil, the others are carbon black and fuel gas. It does not cause secondary pollution.



Meanwhile at most area of the world, the cost of raw meterial is very very low. Because actually they are waste things. People are willing to cooperate with you as waste management. After recycling these waste things are turned into treasure.

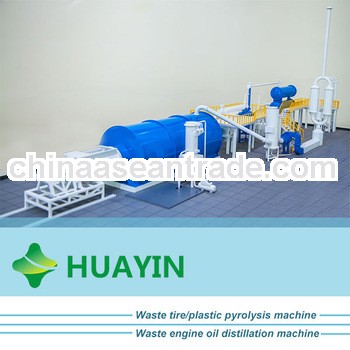

Diagram of waste tire/plastic pyrolysis machine

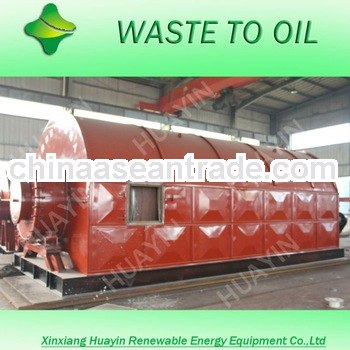

Reactor

1. The gear is seperated from reactor, instead of welding on reactor. So it will not be destroyed by heating.

2. The reactor is supported in a centre line by rollers. It will remain stable while running.

3. Auto-welding, both inside and outside.

4. Made by special boiler plate Q345R. Security and long service life.

5. Made by rock wool insulation board. Save fuel and ensure heating effect.



Auto-feeder

1. 50 ton hydraulic pressure help feeding more raw materials.

2. The diameter is 1.4m. It can feed all kinds of raw materials, including plastic, packages of plastic, truck tire, car tire, or tire pieces after cutting.

2. Save labor, save time.

3. After finishing production it can feed raw material instead of waiting the reactor to be cooled.

Catalyst chamber

1. Improve the oil yield and oil quality.

2. Impurity of oil gas will be collected here.

3. Reduce the speed of oil gas so that it will be better cooled.

Oil-water separator

1. Water from raw material will be separated here.

2. Water sealing design prevent tempering. Ensure saftety.

3. Heavy oil will be collected here.

Condenser

1. The oil gas is cooled separately by 57 pipes inside the condenser. Improve the oil yield by better cooling effect.

2. Series connection for condenser makes the cooling process longer.

3. Light oil will be collected here.

Vacuum device

1. Keep reactor running under normal pressure.

2. Ensure safety.

Anti-back fire device

1. Little residual gas can not be cooled. It will recycle these gas to furnace burning to heat the reactor.

2. Water sealing disign will prevent tempering. Ensure safety.

Dust removal device

1. Dispose of flue gas caused by heating reactor using coal, wood, oil or natual gas.

2. Environment protection.

Certificates

We have ISO9001:2008, ISO14001:2004, CE, SGS, BV and patents for every part of our equipments.



Welcome to contact for further discussion.

Welcome to visit us.
