High Efficiency Coal Burning Air Heater

Brand:aa

Product detail:

ZR series coal burning air heater







Model	Rotating speed	Air delivery distance	Size(mm)	Heat quantity	Coal consumption	Weight	Thermal power	Temperature of warm air	Heating area	Brooding area
ZR-1	2800	80	1400X720X1150	10	15	400	95	160	800	300
ZR-2	2800	120	1620X860X1510	20	22	520	95	160	1200	500
ZR-3	2800	120	1850X920X1560	30	30	660	95	160	1600	800
ZR-4	2800	150	1880X1300X1970	40	38	980	95	160	2000	1000















ZR series coal burning air heater is mainly used in poultry, vegetable planting, flower planting industry. As well as the factory, workshop, school and housing estate, where need collectivity heating. This type heater can rapidly increase the indoor temperature by using hot wind and hot water plumb system. When getting the required temperature, the heater then stops and use the rest energy to keep the temperature, achieving the purpose of keeping warm at the same time saving energy. Simple installation, easy operation, energy saving and no dust pollution. Heating efficiency as high as 95%.

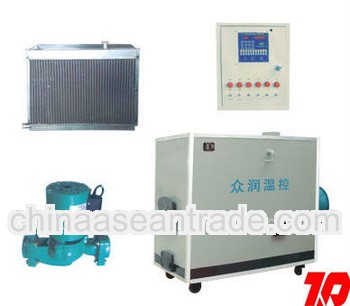

Main chamber.

Mainly use coal to heat, Furnace added with axial flow fan. We can supply 6 types of heaters. The chamber is made of stainless steel and can withstand temperature up to 320°C. Heating efficiency can be 95%.Easy for cleaning and operation.



 Auxiliary equipment.

 Auxiliary equipment mainly consist of radiator and axial fan. By using the axial fan and radiator, the auxiliary equipment send the heating energy into the room to increase the temperature indoor.





Micro-computing environment controller.

Micro-computing environment controller is a new type intelligent controller especially used for industry agriculture and poultry automatic producing. Use the double 4 bits LED DISPLAY to show the temperature and humidity. It can control the time, the temperature of air and the temperature of water. The alive data is collected and dealt by the single piece engine. This system can provide a automatic control during the producing. When the power off,  the controller can save the data and automatically reset when powered.



Circulating water pump.

The circulating water pump is installed at the inlet water tube alongside the main chamber. The main chamber and auxiliary parts are connected by the iron pipe or PRP pipe. When operating, the pump send the hot water from main chamber to the auxiliary parts, and after the water cold, send the water back to the furnace.
