Best quality motor winding wire

Brand:aa

Product detail:

China Best quality motor winding wire



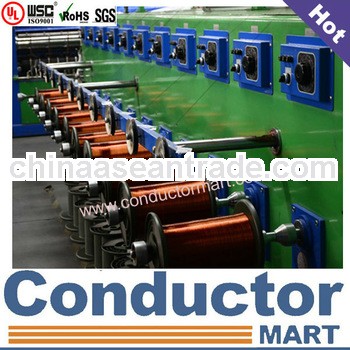

1.Process of producing



We can producing all the sizes in following :

Round size:0.2mm-6.0mm

Flat size: Thickness(a): 1mm-10mm, Width(b): 3mm-16mm



1) Polyester enameled aluminum wire, class 130

2) Modified polyester enameled aluminum wire, class 155

3) Polyesterimide enameled aluminum wire, class 180

4) Polyester (imide) coated with polyamide-imide enameled aluminum wire, class 200

5) Polyimide enameled aluminum wire, class 220



2. Process of Producing & Testing

Maximum Overall Diameter, Conductor Diameter, Film Thickness, Conductor Resistance, Elongation, Spring Back, Mandrel Winding, Sudden Jerk, Cut Through, Heat Shock, Room Temperature Breakdown Voltage, High Voltage Hole, and Pin-Hole, etc.

Code Number		Test Standard	GB/T23312-7-2009
Size	2.0mm	Date	2012-9-17
Type                       Q(ZY/XY)L-240   polyesterimide coated with polyamideimide
Test Tens		Standard value	Test Result
Size	Maximum	2.112mm	2.095mm
	Conductor Diameter	2.00mm	2.012mm
	Tolerance Value	±0.020mm	0.012mm
	F Result	≤0.020mm	0.001mm
	Film Thickness	≥0.075mm	0.083mm
20°C Resistivity		0.008698-0.009149Ω/m	0.00903-Ω/m
Elongation		≥15%	32.20%
Adherence	Test Axis Around	Winding ID	OK
Flexibility	Sudden/Pull	≥55R	65R
Anti-Solvent		≥1h	2h
Alt-Throngh		320°C,2min	OK
Hot Shock		240°C,30min	OK
Broken Down Voltage Will Room		≥5.0KV	11.3/9.7/12/11.5/kv
Continuity	High Voltage Hole	/	/
	Pin-Hole	≤5pcs/6m	1pcs
Conculusion		OK





 3.Insulating Varnish for our enameled wire to guarantee quality.

We using ELANTAS insulating varnish for our enameled wire to guarantee quality.ELANTAS Co.,Ltd.is one of the subsidiaries of ELANTAS Electrical Insulation GmbH which is a division of ALTANA.
