Brand:aa

Product detail:

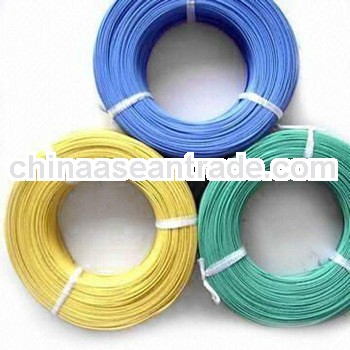

Application of PVC Insulated Copper Wire

The products is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less



Model and Name



single core 450/750V PVC Insulated Copper Electric Wire

Model	Name
BV	Copper Core PVC Insulation Wire
BLV	Aluminum Core PVC Insulation Wire
BVR	Copper Core PVC Insulation Flexible Wire
BVV	Copper Core PVC Insulation PVC Sheath Round Wire
BVVB	Copper Core PVC Insulation PVC Sheath Flat Wire
BLVVB	Aluminum Core PVC Insulation PVC Sheath Flat Wire
BV-90	Copper Core Heat-resistance 105oC PVC Insulation





These are solid copper conductor.



These are stranded copper conductor.





Specification Size and Technical Data



single core 450/750 pvc insulated electrical Common wire



Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
				Cu	Al		Cu	Al
1.5	1/1.38 Solid	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35  Stranded	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0



Servies



 1.Pre-sales Service
Offering comprehensive technical and business consultation services;

 Designing and fabricating targeted products according to the special requirements of clients;

 Sample can be send as customer's requirement

 2.After-sales Service
Highly inspecting  in every working procedure, quality comes first;
Fast & Safe Delivery;
Providing life-long maintenance service;
Providing technical exchanging

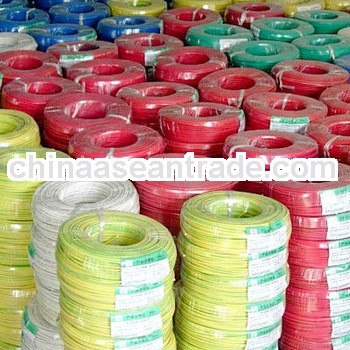

Packing





PE film,Packing in per roll,100m per roll.



Details of Transaction:

1) Minimum order quantity: 10 roll at least







2) Price: FOB or CIF







3) Payment: T/T 30% down payment, balance before shippment







4) Lead Time: within 4-6 days







5) Packing: 100m per roll







6) Sample: Free sample is available for you
