twisted pvc copper cable

Click for original picture
Fob Price: 5.80 USD/
MOQ: 1
Payment Terms: delivery withindays since payment
Location: China
  Mr. leo xing    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:aa

Product detail:



twisted pvc copper cable With following features







twisted pvc coated wire is produced against IEC60502 and IEC60331, . And the product can be produced against the standard of BS, DN, and the standard required by the clients.
1. The long-term permissible operation temperature of the conductor shall not be higher than 70
2. The max temperature of the conductor of cable should less then 160 when short circuit. (less then 5 second)
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0 degree











twisted pvc copper cable Include following code and specification



Nominal sectional area mm 2

Conductor No/Dia. mm

Nominal Insulated thick mm

Max overall Dia. mm

Condcutor Resistance at 20

Min insulated resistance at 70MΩ/km

Weight Kg/km

2.5

9/0.41

0.8

4.2

7.41

0.011

33.0

4

19/0.52

0.8

4.8

4.61

0.009

48.0

6

19/0.64

0.8

5.6

3.08

0.0084

68.0

10

49/0.52

1.0

7.6

1.83

0.0072

115.0

16

49/0.64

1.0

8.8

1.15

0.0062

176.0

25

98/0.58

1.2

11.0

0.727

0.0058

272.0

35

133/0.58

1.2

12.5

0.524

0.0052

384.0

50

133/0.68

1.4

16.5

0.387

0.0051

510.0







MOQ, Capacity& Payment method



For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.







For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.







Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight







Packing Pictures:

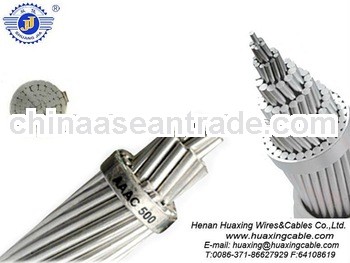

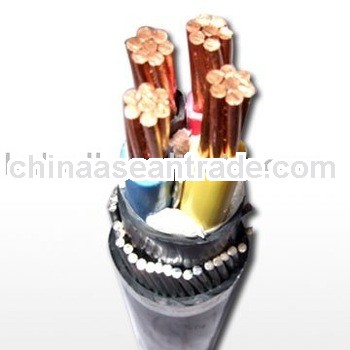

more..Other products from this supplier
