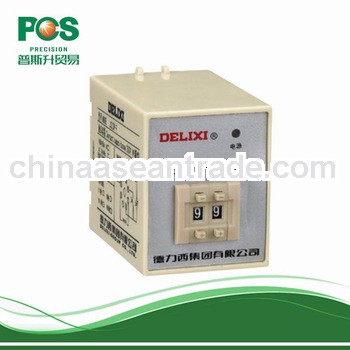

220V 380V Timing Relay

Brand:aa

Product detail:

220V 380V Timing Relay



Applicable Range:

Used in the situation of AC50Hz and controlling voltage 400V or below.

Be used as time-control componet in the automatic controlling circuit according to the scheduled time turn on or off the circuit.



Applicable Standards:

National Standard: GB 14048.4/14048.5

International Standard: IEC 60947-5-1



Features:

1.Small size,light weight and compact structure.

2.Broad time delay range.

3.High delay precision and reliable

4.Long performance



Technical Parameters:

1. Product Name: 220V 380V Timing Relay

2. Brand: Delixi

3. Model: JSZ3

4. Rated voltage: 220/380V

5. Rated current: <1A

6. Time range:1~99s

7. Pin:8

8. Frequency:AC 50Hz

9. Package:100pcs/ctn for timing relay

Type	JSZ3
Outlione dimension	41.5×60×84
Operation	(Power) off delay
Contact capacity	AC380V 1A(Resistance)
Contact electrical life	10×10000 Times
Ambient temp	5~40
Repeat error	≤1.5%
Operating voltage	AC24V36V110V 127V 220V 380V 50HZ;DC 24V
Timing range	1s2s5s10s30s60s
Fixing mode	Surface mounting or Flush mounting
Installation hole Position Fig
Wiring diagram
Note	Surface mounting product matches eight pins special socket Flush mounting matches special cover





Our Service (Why buy from us?):

1.Best quality mechanical & electronics parts are used for long working life of the electrical appliances

2. Our products have the guarantee period of 13 calendar months

3.Simple in design and easy to operate and maintain

3.All products’ parts of electrical are made-up green safety grade materials

4. The fast and flexible production form aim at the customer require
5.Strigent quality control to ensure 100% customer satisfaction

6.No MOQ limited, we provide you one to one service

7.We cooperate with good credit transportation company with right price for you

8.Best customer care and efficient after sales services

9.Dot hesitate to inquire us, we will reply you within 12hours.



How to select a relay:

1. First, remember that relays are protection devices

2. Ampere ratings have to do with the main current being used by the relay.

3. Voltage ratings have to do with the main circuit powering the relay.

4. What kind of contactor matched do you need.



Picture shows:
