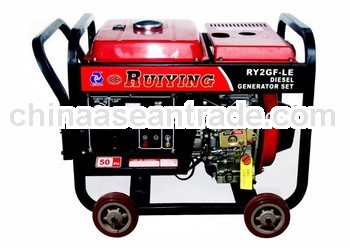

wheeled Air cooled Diesel Generator Open type

Model Code

RY5GF-LE3

ALTERNATOR

50Hz

60Hz

Rated Output Power(kVA)

5.0

6.0

AC Rated Voltage (V)

400/230

416/240

AC Rated Current (A)

7.2

8.3

Phase

Tri-phase

DC Output

12V / 8.3A

Power Factor (cosφ)

1.0

ENGINE

Engine Model Code

RY186FE

Engine type

Single-cylinder, 4-stroke,

Air-cooled Diesel Engine

Rated Output Power(kW/HP)

5.7/7.8

Rated Speed (RPM)

3000

3600

Displacement (cc)

406

Compression Ratio

19:1

Starting Method

Electric Starter

Fuel

0# Diesel (summer)/-10# Diesel (winter)

Fuel tank capacity (L)

13.5

Lubrication Oil

SAE10W30 (above CC grade)

GENERATOR SET

Structure Type

Open-frame

Dimensions (L×W×H) (mm)

720×485×585

Packing size (L×W×H) (mm)

745×505×660

Net weight (kg)

100/107

Low Oil Pressure Alarm System

With

In 20" Container (sets)

96
