3-axis rotating internal bracket,ip wireless wired camera

Brand:aa

Product detail:

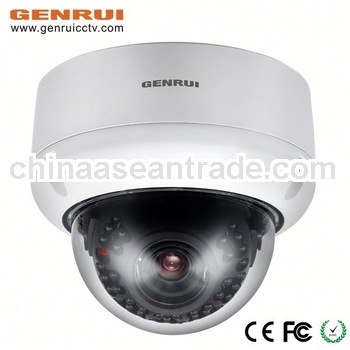

3-axis rotating internal bracket,H.264 Onvif,vandalproof dome Megapixel ip network camera







1. 1.3 megapixel vandalproof dome ip camera
2. P2P,PoE optional
3. 3-axis rotating internal bracket
4. With IR-Cut filter
5. AWB,AE, AGC,AWB,etc.
6. Built-in mini TF memory card slot, support 32G Max.
7. Two-way audio talkback.
8. Privacy mask, motion detection, sensor alarm, email alert .
9. H.264 compression format.
10. Multi-user remote viewing via CMS, Web browsers, IOS & Android mobile phones.
11. Automatic connection recovery after power failure or network interruption.
12. HTTP,TCP/IP,UDP,FTP,SMTP,PPPoE,DDNS,DNS,DHCP,NTP,RTSP,UPNP,etc.

Model No.		GR-ND2332VE	GR-ND2332VL		GR-ND4332VW		GR-ND6332VL
General Function	Feature	Lite version	Low Illumination		Wide Dynamic Range		HD-Low Illumination
	CMOS Type	Aptina Imaging CMOS			Aptina Imaging CMOS		Aptina Imaging CMOS
	CMOS Model	1/3″ 1.3 Mega Pixel			1/3″ 3 Mega Pixel		1/2.5″ 5 Mega Pixel
	HD Output	960P:1280×960P			1080P:2048×1536P		1080P:2560×1920P
	Image Adjustable	720P:1280×720P			720P:1280×720P		720P:1280×720P
		D1:640×480			D1:640×480		D1:640×480
	Illumination	Color: 0.1Lux/BW:0.01Lux(F1.2,AGC ON)			Color:0.6Lux/BW:0.08Lux(F1.2,AGC ON)
	IR Distance	40M(42pcs black IR led)
	Shutter Speed	1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable
	Lens	Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens
	Exposure Control	DSP Auto Adjust
	AGC & WB	AGC:Auto(high, media, low )   White Balance:Auto,Close
	S/N Ratio	≥50dB
Network function	Network Steadiness	Auto Reconnect, Register, UPNP, HB Display, Synchronization
	Support	Support Onvif2.0,PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP, UPNP,SMTP,FTP,NTP,DDNS,DNS
	Agreement
	Dual Stream	Dual Stream Transfer(H.264)CBR/VBR Adjustable Main Stream(1M~8Mbps)With Local Skim, TF Card etc. Sub-Stream(0.5MK~2Mbps)With Network Transfer.
	Upgrade maintenance	Support Remote Upgrade, With Password Protect.
	Wireless	Non		Charge For Optional, Adapting P2P Intelligence Mobile Phone Visit
Special Function	Optional Function	Non		Charge For Optional: POE and TF Card Storage
	Mouse Zoom	Click Any Rectangle Area and Zoom In or Zoom Out on the Image by Mouse
	Vandal Resistant	High Strength Aluminium Casting Alloy,"0°Warp Ray Rate" Acrylic Gauge Cover
	4-Axis Adjustment	Built in 4-Axis bracket, adjust the surveillance angle at any position easily
	Waterproof Grade	constant force soft plug at fitting up joint, IP66
	Intelligent Alarm	Motion detect, Video Shelter, I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal.
Video efficiency	Effective Pixel	1280*720				1280*1080
	Video Frame Rate	50Hz/60Hz: 25fps,30fps,50fps,60fps etc
	Image Capture	JPEG for Local Storage
	Image Setting	Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE.
	Image rolling-over	Level Transposition, Turn Up-Side Down, Easy for Install & Adjust.
Audio	Audio Encoding	Non		With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed
	Audio Function	Non		Audio broadcast Audi playback
Mount Standard	Power Mount	DC Female Connector,5.5×2.1mm
	Network Mount	1ch 10M/100M ether net mouth, RJ45 Mount
	Video Output	1ch local Analog Output, BNC Interface.
	Alarm Mount	Non		1ch Alarm Input 1ch Alarm Output
	Audio Mount	Non		1ch Audio Input 1ch Audio Output
	RS485 Mount	Non		1ch RS485 mount
Other standard	Working Enviroment	Enviroment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90%
	Power Consumption	DC 12V±5% ,IR Led on: 5W
	size(mm)	Products Size:155 × 155 × 130 mm   Carton Size:580 × 430 × 380 mm(22pcs/CTN)
	Weight	Net Weight:1.35 Kg~1.40 Kg     Gross Weight:29.70 Kg~30.80 Kg
