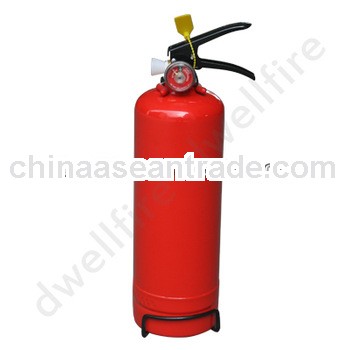

1Kg Fire extinguisher

Brand:aa

Product detail:

1Kg ABC Fire extinguisher

 Dry chemical powder



 Specifications

• Dia. of cylinder 85 mm, 90mm
• Height of cylinder 272 mm
• Material: DC01, ST12, ST14
• Working pressure 14 bar
• Testing pressure 27 bar

 Size of powder FES.

• 0.5 Kg, 1 Kg, 2 Kg, 3 Kg, 4 Kg, 5 Kg, 6 Kg, 9 Kg, 12 Kg
• 1.1 Lbs, 2.2 Lbs, 3 Lbs, 5 Lbs, 10 Lbs, 15 Lbs, 20 Lbs

 Dry powder

• ABC : 30%, 40%, 50%, 70%m, 85%, 90%
• BC :  20%, 30%, 40%, 50%, 70%m, 85%, 90%



 Technical Specifications

Model No.	DP-1	DP-2	DP-4	DP-6	DP-9	DP-12
Capacity (Kg)	1	2	4	6	9	12
Cylinder Dia. (mm)	85	110	135	162	182	182
Cylinder Height (mm)	272	325	408	436	500	560
Volume (L)	1.20	2.40	4.70	7.00	10.50	13.50
Min Thickness (mm)	0.80	1.07	1.17	1.24	1.30	1.30
Total Weight (Kg)	2.00	3.40	6.00	9.50	13.60	17.50
Material	DC01 / ST12
Working Pressure (°C)	14 Bar at 20 °C
Test Pressure (Bar)	27 Bar
Temperature Range (Bar)	-30 °C ~ +60 °C
