transmitter and receiver hotest selling wireless receiver controller

Brand:aa

Product detail:

world-popular wireless receiver controller  transmitter and receiver

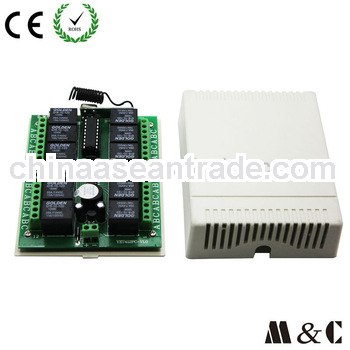

 Productphoto:









1. brief introduction

Our company design and produce the M&C 412PC twelve channels wireless intellect receiving control what can provide switch signal to the twelve relay, so it can meet many requirements such as: control motor’s corotation and reversal, the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security line



This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however it could learning again by the owner if want to obtain the right of use.



2. The way of output

1. Signal inching-1 connect 2 disconnect

2. Signal interlock- 2 connect 1 disconnect

3. Signal self-locking –1.2 disconnect

4. One way self-locking, another way inching-1.2 connect

(check the Circuit diagram for details)



3. Learning way and steps

1. Press learning key of receiver-indicate enter into the status of learning as you hear the sounds of buzzer.

2. Press any button of the remote control-indicate learning success as you hear the sounds of buzzer.



4. Delete memory message

Press the learning button of the receiver about 7 seconds until the ring of buzzer is extinguished, which indicate success to delete the memory message.



5. Main Technique Data

Working voltage	DC12V/ 24V(optional)
Static working current	≤7mA
Working temperature	-40°C - +80°C
Receiving sensitive	≥-105dBm
Working frequency	315MHz,433MHz
Output voltage	alternating current or direct current
Output current	≤10A
Size	100mm*80mm*27.5mm





6. Circuit diagram for your reference
