Product detail:

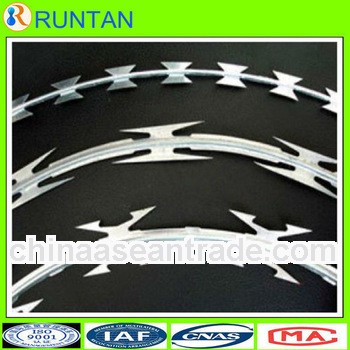

Razor wire
1.Materials:galvanized steel sheet and wire, or stainless steel sheet and wire , as client require,
2.Razor thickness:0.5mm
3.Wire diameter:2.5mm
4.Razor width : 15 mm
5.Razor length: 22 mm
6.barb spacing: 26mm--100mm
7.Outside diameter of roll:600 mm
8.Number of loops:33--102
9.Standard spreading length per roll:8m --16m
10.Razor barbed type : cross type
11.Packing : compression rolls,waterproof paper, woven bag packing.
Cross type razor barbed wire(double loops)
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Crosstype |
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
Blade style
Reference No. | Blade Style | Thickness | Core wire diameter | Blade length | Blade Width |
BTO-10 |
| 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 |
BTO-12 |
| 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 |
BTO-15 |
| 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 |
BTO-18 |
| 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 |
BTO-22 |
| 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 |
BTO-28 |
| 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 |
BTO-30 |
| 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 |
CBT-60 |
| 0.6±0.05 | 2.5±0.1 | 60±2 | 21±1 |
CBT-65 |
| 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 |

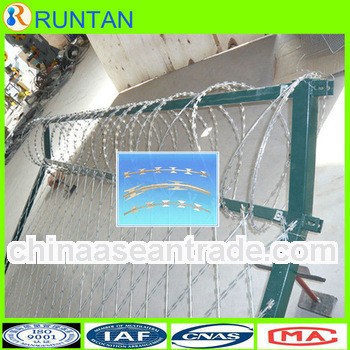

Application: It is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security.
Certificates:ISO9001:2008
