Product detail:
Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property
Material for Razor Barbed Wire Fencing: Galvanized blade, stainless steel blade.
Features: Compact and rational structure, high safety factor, for the protection of prison and key project .
Technical Note: Razor barbed wire fencing can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing
Material: High Carbon Steel/Stainless Steel Wire
Hot Dip Gal. Iron Blade/Stainless Steel Blade

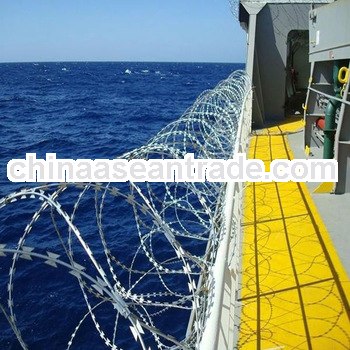

Features: Also named Razor Wire, Barbed Tape or Barbed Tape Wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion
Outside Diameter | No. of Loops | Standard Length per Coil & With or without clips | Type | Notes |
450mm | 33 | 7-8M (without clips) | CBT-60.65 | Single coil |
500mm | 56 | 12-13M (without clips) | CBT-60.65 | Single coil |
700mm | 56 | 13-14M (without clips) | CBT-60.65 | Single coil |
960mm | 56 | 14-15M (without clips) | CBT-60.65 | Single coil |
450mm | 56 | 8-9M (3 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11M (3 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 clips or without) | BTO-10.12.18.22.28.30 | Cross type |
Reference number | Thickness | Wire diameter | Barb length | Barb width | Barb Spacing |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
packing
