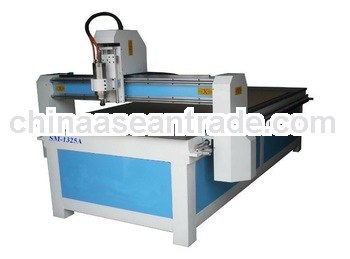

1325 1300*2500mm desktop cnc router wood molding machine

Brand:aa

Product detail:

                     wood molding machine

Wide range of application:

Except for advertising work. It is mainly designed for woodworking,

any kinds of wood and plastic material processing work, door making,

furniture making etc



Suitable for Materials

Engrave and cut on hard wood, MDF, Aluminum and plastic composite panel,

Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet,

PCB Aluminum sheet etc.



Features:

Stepmores SM-1325 series woodworking CNC Router adopt steel structure body,

use Rack and Pinion and Linear Guide ways, are equipped with high speed

water cooling spindle (or HSD air cooling spindle) and High speed

stepper motor( or Japan Servo motor)



Specifications:

Model	SM-1325A
X Y working area	1300 x 2500 mm
Feeding height	150 mm
Structure	Whole thick Steel cast tube.   Gantry moving type
Motor	Stepper motor : 86BYG450B
Driver	stepper driver: Leadshine
X Y Z	X Y Gear rack straight tooth type, Z ball screw X Y Z ----- Round rail
Spindle power	3kw water cooling   (2-12.7mm shank bits)
table	T slot ( aluminum profile)
Dust absorption	3kw
Control system	Mach3 Parrallel port
Working Speed	0-10,000mm/min
Working precision	0.05mm/300mm
Command code	HPGL, G code
Repeatability	0.01 mm
Power	AC220V/380v ±10% / 50~60Hz
Compatible Software	Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc
