About Fortuna

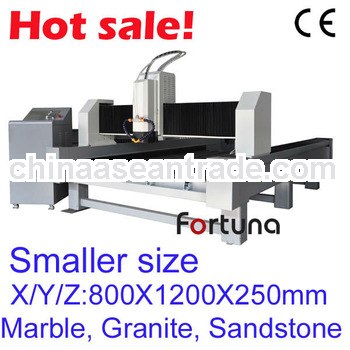

About DB1200K small cnc router for wood metal stone
USB Handle Control, 4 Aixs
Triple security measure protect machine against damage
Certificated by CE and ISO9001
Sample

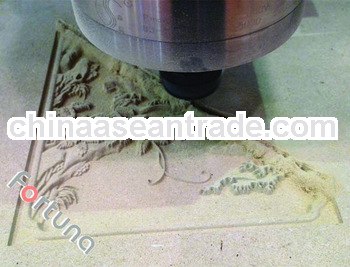

Stone engraving
Perfectly worked on Glass, brick and softmetal
glass engraving machine
Application
• Glass engraving, glass crafwork
• Marble, granite, sandstone, brick, glass and ceramic tile craftworks
• Stele processing
• Gravestone engraving, monument engraving
• Individual indoor and outdoor decorations making
• Other stone industry
Features
• The diamond cutter and sintered cutter for hard materials make it easier to process
vertical letter and pattern on stone
• High rigid frame structure can achieve high speed and high accuracy.
• The precise large power spindle can provide high speed engraving and fine
processing.
• Automatic cutter sensor improves engraving efficiency
• Power-off protective memory function assures restarting work in the same position
after power-off
• Advanced DSP offline control system can provide better stability.
• With dust-proof and water-proof system
• With 250mm vertical movement
Available in larger size DB2500K model, see below specification:
Specification
Items | DB1200K | DB2500K |
Max Enggraving Size(X/Y/Z)(mm) | 800X1200X250 | 1300X2500X250 |
Working table size(mm) | 950X1300 | 1415X2600 |
Vertical Movement(mm) | 250 | 250 |
Gantry Height(mm) | 280 | 300 |
Spindle Power(KW) | 3.0 | 5.5 |
Max Spindle Speed(rpm) | 24000 | 24000 |
Control system | A11 | A11 |
Manner of Receiving Date | USB | USB |
Cutter Diameter(mm) | φ3.175-12 | φ3.175-12 |
Spindle Cooling System | Circulation Water | Circulation Water |
Cutter Cooling | Circulation Water | Circulation Water |
Cooling Pump Power(W) | 120 | 120 |
Repetition Accuracy(mm) | 0.02 | 0.02 |
Voltage(V) | 380 | 380 |
Currency(A) | 23 | 27 |
Power(KW) | 6.5 | 8.5 |
Pulse(Hz) | 63.67X63.67X200 | 63.69X63.69X400 |
Max Moving Speed (m/min) | 30 | 30 |
Water Proof Table | Steel sink + Rubber | Steel sink + Rubber |
X/Y Axis Dust-Proof and Water-Proof | Bellows Cover | Bellows Cover |
X/Y/Z Axis Lubrication | Self-Lubrication with Oil Pump | Self-Lubrication with Oil Pump |
X/Y Axis Transmission | Rack-Pinon | Rack-Pinon |
Z Axis Transmission | Ball Screw | Ball Screw |
Machine Size(mm) | 1530X1980x1020 | 3470X2120x1450 |
Packing Size(mm) | 1680X2130X1170 | 3600X2220X1550 |
Gross Weight(kg) | 600 | 1400 |
CIF, DDU, DDP price supplied, kindly let us know your destination seaport first.
We are seeking agents in some country, you are welcome to inquire for more detailed information.
