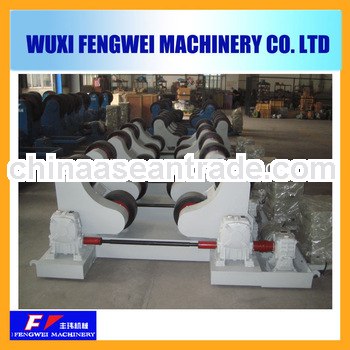

30T adjustable welding bed in butch

Click for original picture
Fob Price: 50000.00 USD/
MOQ: 1
Payment Terms: delivery withindays since payment
Location: China
  Ms. Liping Bian    Contact Now 询价
Not exactly what you want? Post a quick Buying Request !


Product Detail

Brand:aa

Product detail:

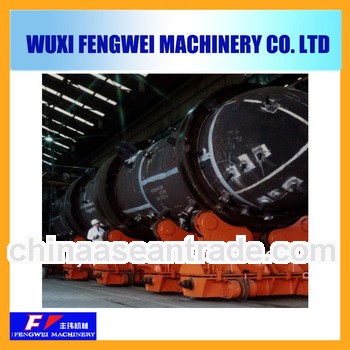

 Our self-alignment welding rotator is mainly used for handing and automatic welding circular metal containers, and can be widely applied to the oil industry, press vessel field, wind power production line, pipe line production, and many other round workpiece.

Our self-alignment welding rotator is designed and produced to better satisfy the growing demands for the pressure vessel manufactures both domestically and internationally. It can deal with a wide range of diameters, and it adopts frequency conversion setting and stepless speed regulation mode.

In standard configuration, one set is an active one combined with an idler one .the active rotator has a set of driving system ,it mainly consists of AC frequency motor , reducer, coupling and connecting shaft. Through the AC motor and two sets of worm gear reducers working together, which ensures to make the rollers run.

 The main technical parameters:

Type

Max loading weight

(Kg)

Size limit of suitable product(mm)

Diameter and width of rollers

Roller linear speed

(m/h)

Motor power(Kw)

Way of setting

Rubber roller

Metal Roller

HGZ-5

5000

Φ250-2300

Φ250×100

2×Φ240×20

6-60

0.75

Electric magnetism setting or frequency conversion stepless inverter speed regulation

HGZ-10

10000

Φ320-2800

Φ300×120

2×Φ290×25

6-60

1.1

HGZ-20

20000

Φ500-3500

Φ350×120

2×Φ340×30

6-60

1.5

HGZ-40

40000

Φ600-4200

Φ400×120

2×Φ390×40

6-60

3

HGZ-60

60000

Φ750-4800

Φ450×120

2×Φ440×50

6-60

4

HGZ-80

80000

Φ850-5000

Φ500×120

2×Φ490×60

6-60

4

HGZ-100

100000

Φ1000-5500

Φ500×120

2×Φ490×70

6-60

5.5

HGZ-150

150000

Φ1000-6500

Manufacture according to the need

6-60

2×3



































These welding rotators are exported in batch to The Middle East. The maxmum loading weight is 20 tons, the color is according to customers’ requirements.



These are special welding rotators for customers. They have diferent special functions. Such as travelling, large ton, lead-screw and hydraulic lifting.



The main process :



 Our products are transported to port:



 The picture of  customer and our boss:
