Product detail:

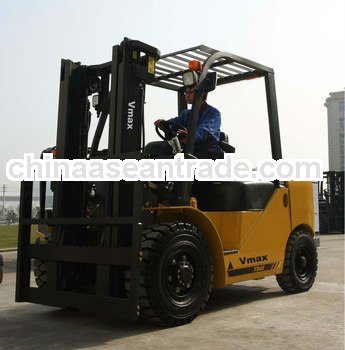

Advantage of diesel forklift machine:
Vmax diesel lift truck is ergonomic designed. This diesel fork lifter is equipped with imported hydraulic brake elements and easy-opened engine hood. These diesel lift trucks are suitable for working in the container. Advanced hydraulic system, 2-speed lifting system can automatically adjust its lifting speed according to the goods weight ,electric controlled valve can work safety and efficiently. Eqiupment with heavy –duty driving axle with big bearing capacity and enhanced oil –cooled braking system, increase the reliabillgy and durability. Full automatic stepless speed adjustable electric controlled transmission gear box guarantee the forklift with superior travel and track performance. New type engine with super power has features of good performance ,low fuel consumption ,enough power reservation ,EPA standard displacement level.
Specifications of diesel lift truck:
| General | Manufacturer | Vmax | |||||||
| 1 | Model | CPCD50 | CPCD60 | CPCD70 | |||||
| 2 | Rated capacity | kg | kg | 5000 | 6000 | 7000 | |||
| 3 | Load center | mm | mm | 600 | |||||
| 4 | Gearbox change speed type | Hydraulic | |||||||
| 5 | Power type | Diesel | |||||||
| 6 | Tire type | Front/Rear | Pneumatic | ||||||
| 7 | Wheels | Front/ Rear | Dual front wheels.4/2 | ||||||
| Dimensions | 8 | Lift height | mm | mm | 3000 | ||||
| 9 | Free lift height | mm | mm | 205 | 210 | 215 | |||
| 10 | Fork size | L*W*T | mm | mm | 1220x 150x55 | 1200x 150x60 | 1200x 150x65 | ||
| 11 | Mast tilt angle | Fwd/Revs | deg | deg | 6/12 | ||||
| 12 | Fork outside spread Min/Max | mm | 300/1700 | ||||||
| 13 | Overall length (without fork) | mm | mm | 3472 | 3592 | ||||
| 14 | Overall width | mm | mm | 1995 | |||||
| 15 | Mast height fork lowered | mm | mm | 2500 | |||||
| 16 | Overall height fork raised | mm | mm | 4429 | |||||
| 17 | Overall height (overhead guard) | mm | mm | 2420 | |||||
| 18 | Turning radius (outside) | mm | mm | 3300 | 3450 | ||||
| 19 | Load distance (centerline of front axle to front face of forks) | mm | mm | 590 | 595 | ||||
| 20 | Wheel base | mm | mm | 2250 | |||||
| 21 | Tread | Front | mm | mm | 1470 | ||||
| 22 | Rear | mm | mm | 1700 | |||||
| 23 | Min. Under-clearance (full load / no load ) | Bottom of mast | mm | mm | 160/200 | ||||
| 24 | Bottom of frame | mm | mm | 190/230 | |||||
| Performance | 25 | Speed | Travel speed | With load | km/h | km/h | 26 | ||
| 26 | Without load | km/h | km/h | 28 | |||||
| 27 | Lifting speed | With load | mm/sec | km/h | 370 | 330 | 320 | ||
| 28 | Without load | mm/sec | km/h | 550 | 500 | 500 | |||
| 29 | Max. Drawbar pull | KN | KN | >21 | |||||
| 30 | Max. Gradeability | % | % | >=20 | |||||
| 31 | Tread | Front | MM | 1470 | |||||
| 32 | Rear | MM | 1700 | ||||||
| 33 | Transmission | Type | (hydraulic) | ||||||
| 34 | Shift | FWD/BWD | 2-2 | ||||||
| Weight | 35 | Self weight | kg | kg | 8000 | 8640 | 9350 | ||
| Tyre | 36 | Front | Size | Front | 8.25-15-14PR | ||||
| 37 | Rear | Rear | 8.25-15-14PR | ||||||
| 38 | Brake | Brake | Service | Hydraulic-Foot pedal | |||||
| 39 | Parking | Mechanical-Hand lever | |||||||
| Transmission | 40 | Transmission | Battery | Voltage / Capacity | V/ AH | 2-12V/80AH | |||
| 41 | Internal combustion engine | Model for option | 1. ZHAOCHAI ; 2. ISUZU | ||||||
| 42 | Transmission | Type | Hydraulic | ||||||
| 43 | shift ( Fwd/Rvs) | 2/2 | |||||||
