Brand:aa
Product detail:

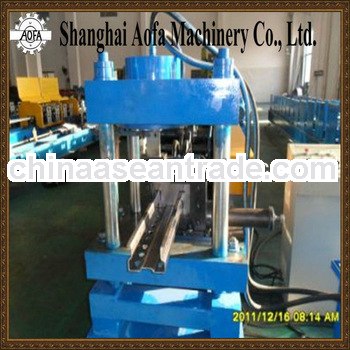

Hot sales u type roll forming machine
Other machine we manufacture

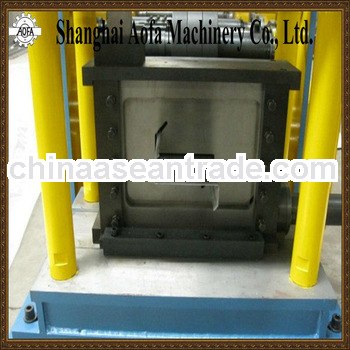

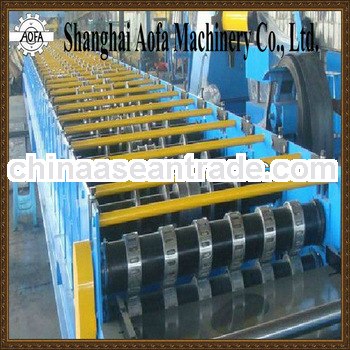

Cold roll forming mahcine, color steel roll forming machine,roof and wall panel machine,deckingfloor roll forming machine,floor decking forming mahcine, glazed tile roll forming machine,stud and track roll forming machine, Z and C purlin machine, highway guardrail roll forming machine,cable tray machine,sandwich panel roll forming machine and so on.
Profile drawing:
Working flow:
Decoiler-----feeding------roll forming ------ punching-----cutting----output table
Machine components:
No. | Name | Qty |
1.
| De-coiler | 1 Set |
| ||
2.
| Roll Forming Machine | 1 Set |
| ||
3.
| Punching device | 1Set |
| ||
4.
| Hydraulic Cutting Device | 1 Set |
| ||
5.
| PLC Control Box | 1 Set |
6. | Output table | 1 Set |
Technical Parameters
Material specification | Galvanized and pre-painted galvanized steel. |
Thickness | 0.3 mm to 0.7mm. |
Main motor power | 5.5 kw. |
Hydraulic station power | 3 kw. |
Feeding width | 124mm. |
Cover width | 60mm. |
Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
Roll forming Speed | 12 m/minute. |
Cutting Tolerance | ±2mm |
Manual Uncoiler | Max. Capacity: 5000kgs. |
Voltage | As per customer’s request. |
Numbers of stands | 11 stands/stations/pairs. |
Roller material | 5# steel polished and coated with chrome HRC55-60° |
Shaft diameter | 70mm |
Shaft diameter | high grade No.45 steel after treatment |
Type of cutting | Roll-formed and length-set profile cutting. |
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18monthes free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
We can produce machine as different profile drawing.
