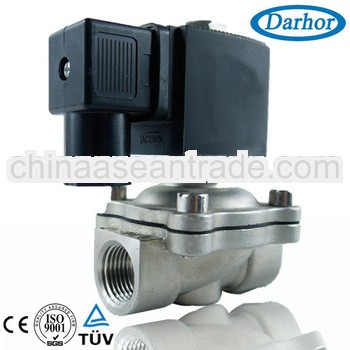

2W31 hot seller economic water solenoid valve
1, with CE, ISO, TUV certificate
2, for water , oil, gas, etc
3, cheap price
4, one year guarantee
Characteristic : | 1.Direct lifting diaphragm construction; |
2.Open from zero bar for low pressure system use | |
3.High frequency of DIN plug coil | |
Medium : | Air, City Gas, Water, Oil, Petroleum, etc. |
Temperature: | NBR Seal: 14F to 176F , -10 to 80 |
EPDM Seal: 14F to 250F , -10 to 120 | |
VITON Seal : 14F to 300F, -10 to 150 | |
Pressure: | 2W31: 0.00MPa ~ 1.0MPa |
PortSize: | 3/8,1/2,3/4,1 |
PortThread: | BSPP ,BSPT ,NPT ,Flange, UNF |
Orifice(mm): | 12,15,20,25 |
Voltage: | DC - 12V,24V |
AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ | |
Tolerance:+/- 10% | |
Coils : | S91B, 17VA(AC), 10W(DC), IP65,100%ED |
NASS COIL 0543 on request | |
Special coils: | Latching coil. DC 6 ~ 12 V |
Material: | Body - Brass or Stainless steel |
Seal -NBR, EPDM, PTFE or VITON | |
Armature Tube - Stainless Steel 304 | |
Plunger - Stainless Steel 430F | |
Stop -SS430F | |
Springs - SS 304 | |
Shading Rings - Stainless Steel 304 |
Detailed Product Description
2 way direct lifting diaphragm Water solenoid valve with low pressure. It is a high cost performance valve.
2W31 Normally Closed , with Coil S91B
Port Size | Orifice | Cv | Min Pressure | Max Pressure | Seals | Body | Valve Body | Coil | |
AC(17VA) | DC(10W) | ||||||||
3/8" | 12 | 4.5 | 0. 0MPa | 1. 0MPa | 1. 0MPa | EPDM,PTFE, | Brass, or | 2W3112 X X X | S91B |
1/2" | 15 | 4.5 | 0. 0MPa | 1. 0MPa | 1. 0MPa | 2W3115 X X X | S91B | ||
3/4" | 20 | 9.3 | 0. 0MPa | 1. 0MPa | 1. 0MPa | 2W3120 X X X | S91B | ||
1" | 25 | 12 | 0. 0MPa | 1. 0MPa | 1. 0MPa | 2W3125 X X X | S91B | ||
