Hangzhou Darhor Technology Co., Limited
Click to enlarge

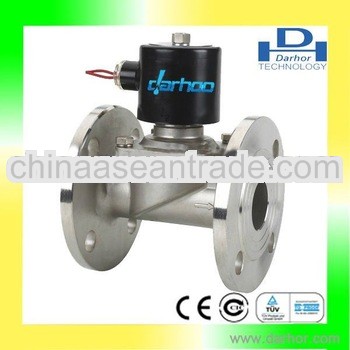

flange magnetic solenoid valve
1. ISO 9001:2000, CE approved
2.1 million times life testing
3.One year gurrantee
Specifications:
-- Media: Steam,water, hot water, air, oil (below 20cst)
--Function type: Normally Closed (N/C), Normally Open (N/O)
--Pressure Normally Closed 16 bar, Normally Open: 10 bar
--Temperature: -5 ÷180
--Mode of action: Pilot operated
--Body material: Brass
-- Sealing material: PTFE
--Protection class: IP54
Model choosing:
Model | PS-15 | PS-20 | PS-25 | PS-32 | PS-40 | PS-50 | |
G Connection | 1/2" | 3/4" | 1" | 11/4'' | 11/2'' | 2" | |
Orifice Size | mm | 20 | 25 | 35 | 40 | 50 | 60 |
Cv Value | 4.5 | 7.6 | 12 | 22 | 30 | 48 | |
L | mm | 75 | 75 | 92 | 110 | 122 | 161 |
H | mm | 135 | 142 | 150 | 150 | 155 | 174 |
H1 | mm | 112 | 117 | 138 | 138 | 140 | 152 |
Medium temperature | -5 ÷180 | ||||||
Pressure | bar | Normally Closed: 0.4 ~ 16; Normally Open: 0.4 ~ 12 | |||||
Power | AC:220V~AC:230V/50-60HZ 22VA; AC110 ~AC:120V/50-60HZ 19VA; DC24 10 W; DC12 9W ; Range:±10% | ||||||
Darhor workshop show:
