Product：
Brand： dalongkai
Price： Negotiable
MOQ：
Total supply：
Delivery time： From the date of payment from the buyer within days of delivery
update time： 2019-01-18 15:06  Valid to：Long-term effective
  Inquiry
Profile

Voltage :: 31.5Mpa, Customized Production Rate（steel）: 13.0 - 16.5 Tons / Hr
Bale Weight(steel): 900 - 1600kg Shipping Weight: Approx.32.6 Tons
Color: Customized Condition: New
Press Box Size: 4000*3500*1300 Bale Size: 700*700
Motor: 135 Kw Quality: Grade A

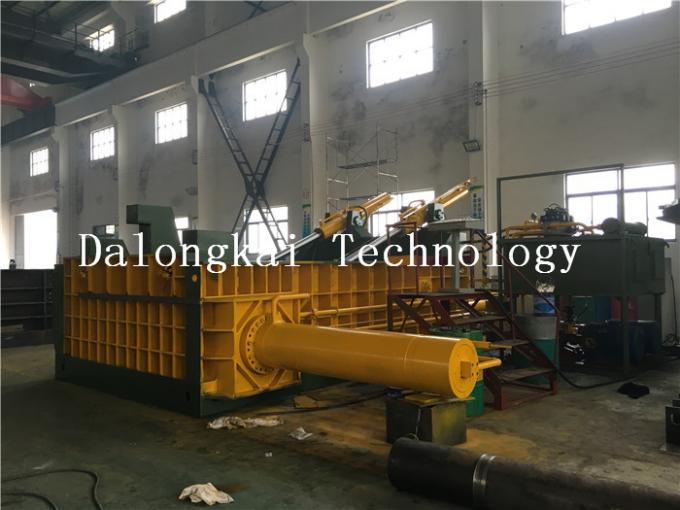

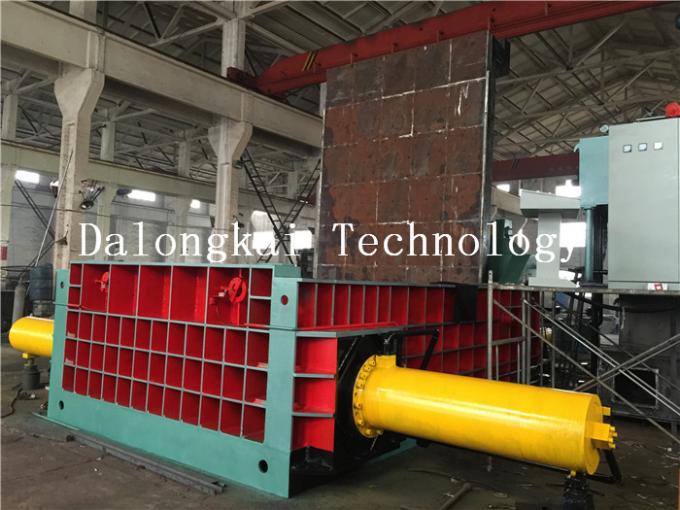

135 Kw Motor Hydraulic Baling Press Machine Cuboid Block Scrap Metal





Specifications



1. Hydraulic metal baler



2. Hydraulic drive ,manual valve operation or PLC control



3. Waste metal baler machine



4. Bale-discharging :turn-out ,push-out, forward-out



5. Metal press baler machine





Introduction



Y81 series hydraulic metal packaging can be all kinds of metal scrap (scrap, shavings, scrap steel, aluminum, copper, stainless steel scrap, scrap cars, etc.) squeezed into an octagonal shape, the shape of a cylinder and other qualified furnace, can reduce the transportation and smelting costs, but also improve the rate of investment furnace. This series baler is mainly used in steel mills, recycling industries, as well as nonferrous metal, ferrous metal smelting industry.


Features

1. All models use hydraulic drive, or manual or PLC control.

2. ariety of models to choose from: different pressures, material box size, mass, shapes and sizes

3. Bale-discharging: "turn-out" package, and "push-out", "forward-out" discharging can be choosed.

4. where no power supply can be powered with diesel engine





Technical Parameters



Power System

Rated Speed

Rated Power

Power Spec.

Lid cyl. Force

Side Pressure

cyl. Force

Main Pressure cyl. Force

Motor

2100 rpm

 kw/set

3ph,50/60 HZ

90 Ton

160 Ton

315 Ton















Small Door

cyl. Force

Hydraulic System Pressure

Idle Cycle

Time

Hydraulic System

Rated Displacement

Max. Operating

Pressure

Operating

System

18 Ton

55 Mpa

APPROX. 110 sec

Pump

50 mr/r

(/set)

31.5 Mpa

Manual Valve Operation; PLC Operation















Standard Operation



                  Optional  Configuration

A3 Steel Liners , Surface Heat Treatment

Cutting Blades and Teeth(2 sides)

Loading Hopper

Cooler / Heater

Diesel / Diesel

Generator for Power
