Technical parameters |
|||
|
Engine |
Pericom USA |
Length * width * height |
2.88*2.50*1.041m |
|
Engine power |
31 HP |
Laser control system |
Danfoss USA |
|
Start |
Electronically control start |
Laser control range |
Plane, slope, double slope |
|
Fuel tank capacity |
17L |
Leveling adjustment |
Screed head self-adjusting |
|
Fuel consumption |
4L/h |
Vibration frequency |
5000 times/min |
|
Vibration mode |
Original |
Drive system |
Hydraulic motor four-wheel drive |
|
Leveling thickness |
60-300mm |
Max ground clearance |
390mm |
|
Tire |
Skinny solid puncture-proof |
Weight |
940kg |
Features & Benefits
Aluminum -Magnesium alloy materials for Screed head
Hydraulic /proportional valve (Accurate FF ,FL)
Sealed bearing,Auger paving,screed faster
Laser Emitter, auto control the flat surface and dual slope

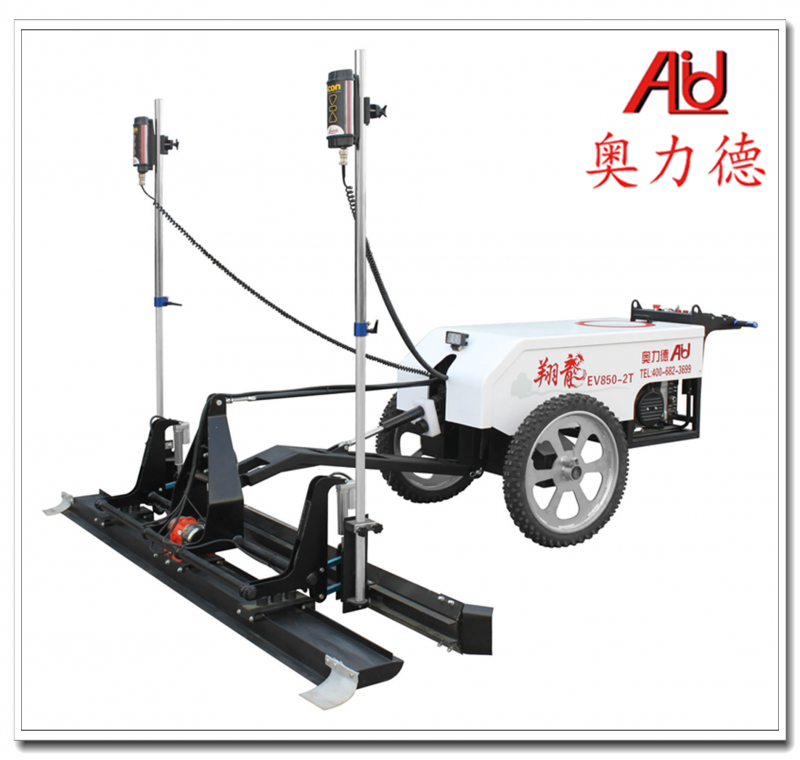

Application Range of Concrete Laser Screed
Indoor Floors such as workshop, plants and warehouses; clean workshop for electronics and appliance, food material warehouses, Medicine factories and warehouses and bulk supermarkets, logistics centers, conference and exhibition centers, etc.
Outdoor Ground such as docks, container yards, storage yards; Airfield runway, landing fields and parking lots; and squares, residential area squares and municipal roads.
Conclusion
Laser screed has Laser guidance，Auger dispersing concrete,and then Vibrating and Consolidating concrete the mass.
Flatter floors , Less manual effort , Greater accuracy, Faster placement
