1、Dimension:90mm*46.4mm*72.4mm

2、Weight：270g

3、Outlet diameter: 1/2” thread

4、Inlet diameter: 1/2” thread

5、Pump body material:PA66+30%GF

6、 Max. Loading current：rated current±0.1

7、Types of fluid: water，oil，acid-base solution（according the test result）

8、Fluid working temperature;：-10-50℃(please keep the fluid from freezing）

9、Working environment temperature：-10-50℃

10、Storage temperature：-10-50℃

11、Noise level:<40dB（while pumping water）

12、Water proof level:IP68（submersible)

13、Power supply:solar panel ，battery，adapter，battery module

14、Life expectancy： more than 20,000 hrs

Features：

1、Small size，high efficiency，long life expectancy，low noise level；

2、Ceramic shaft，Carbon graphite seal  low coefficient of friction；

3、0.5% non-comformity rate < 0.5%

4、Brushless, no mechanical wear，electronic commutator，

5、The electricity and fluid are insulated from each other，sealed with epoxy，100% water proof，leakage proof；

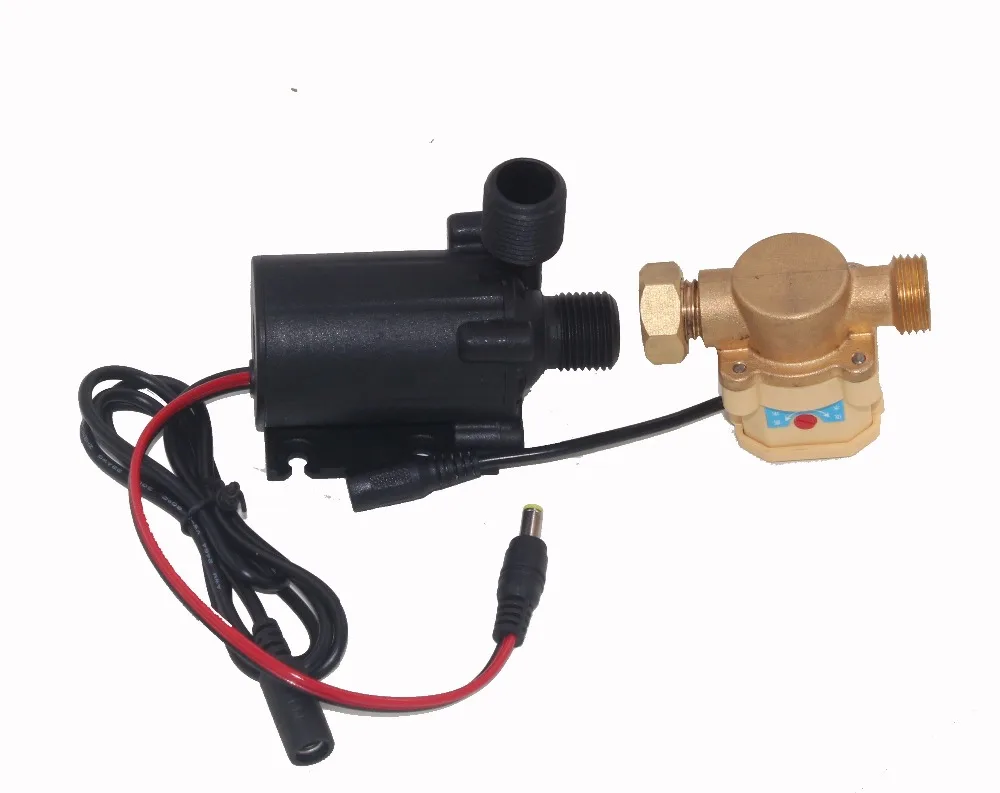

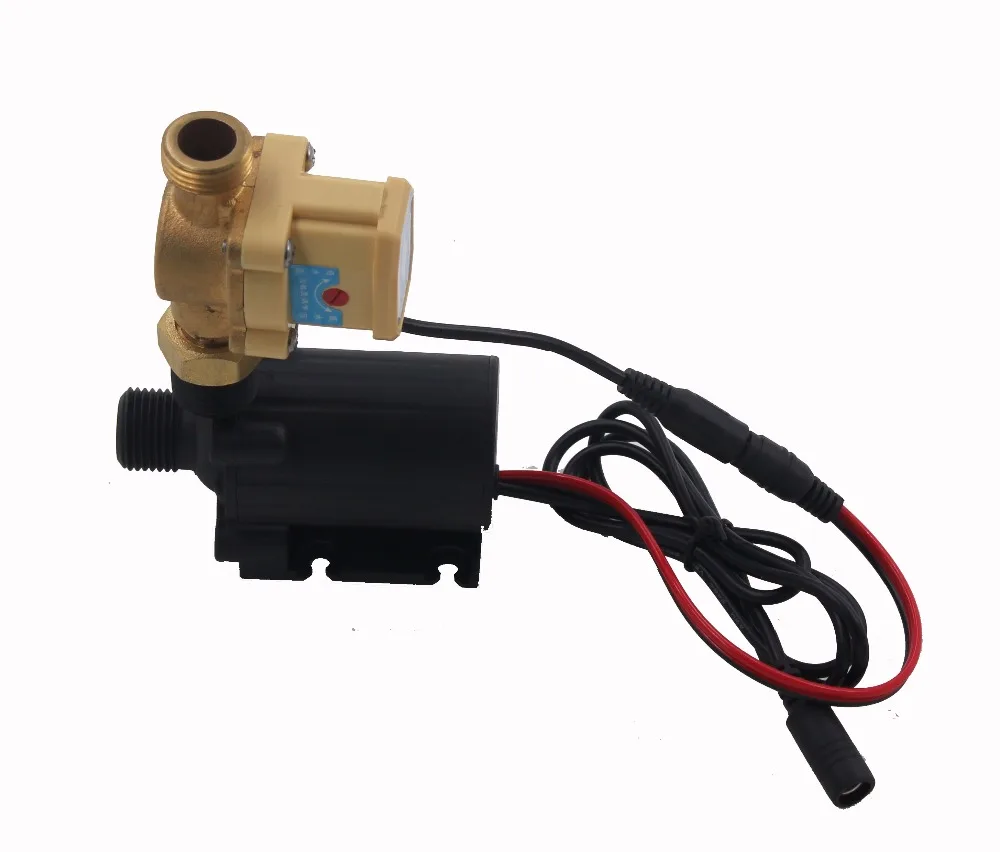

Product Photos:

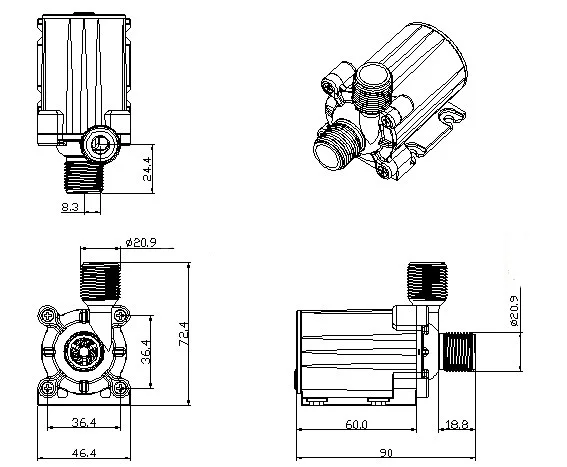

Dimensions:

Spare Parts:

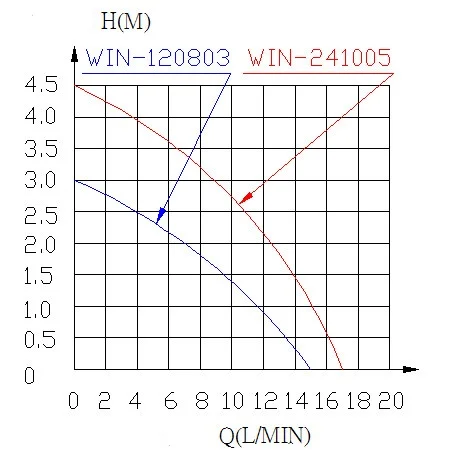

Flow Rate / Lift Curve:

Ｈow to install：
