Parameters:
Model:SL-DC2L1000Y04S-S
Volatge(V):24V
Power(W):24W
Max static water head(M):4.0M
Max static water flow(L/H):1000L/H
Size(MM):100.4*50*69MM
Dimension of outlet(MM):13MM
Net weight(KG):0.34KG
Specifications:
1.Driving method:Brushless,Permanent magnetic
2.Pump material:ABS,PES,SPS,PPS,PA66+30%GF(Optional)
3.Using condition:Submerible
4.Fluids:Fresh,oil and salt water
5.Max working temp:60 Celsius
6.Noise:<35dB
7.Waterproof class:IP68(can be submersible installed)
8.Life span:More than 30,000hrs
9.Power supply:Solar panel,DC electric source,adapter,battery
10.Protection function:Drying,running and blocking protection(submersible)

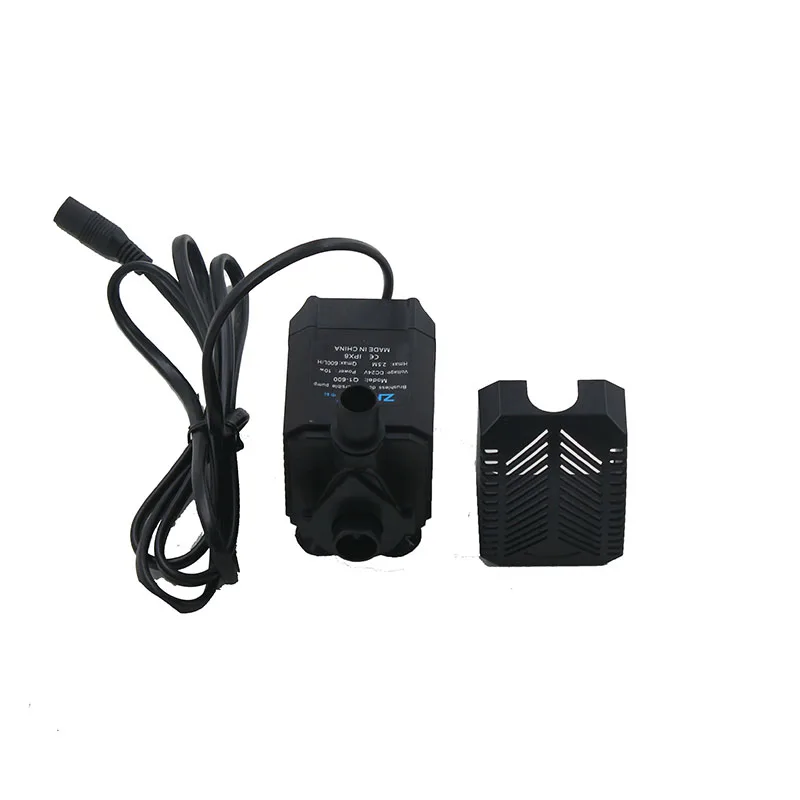

Product Photos:
Dimensions:
Features:
Ø DC24V, low-voltage, safe, NO.1 aquarium submersible pump in china.
Ø 100% copper motor, brushless, non-pollution, small size with high efficient ,long life span.
Ø super energy saving 50%.
Ø Small size, high efficiency, maintenance-free, low consumption, strong anti-jamming ability, stable performance.
Ø Adopt silicone foot to absorb vibration &reduce noise,easy for installation.
Ø Stator and control circuits are completely sealed by epoxy resin completely separated with rotor, waterproof, avoided water-leakage problem which long exists in normal DC motor pump products.
Ø Protection functions can be customized such as lock protection, dry-run protection and so on.
Ø Reduced the mortality to 0.05% after long-time study by R&D dep.
Ø Suitable for submersible installation.
Ø Offer ODM serve for pump and other controller system.
