//Application: //

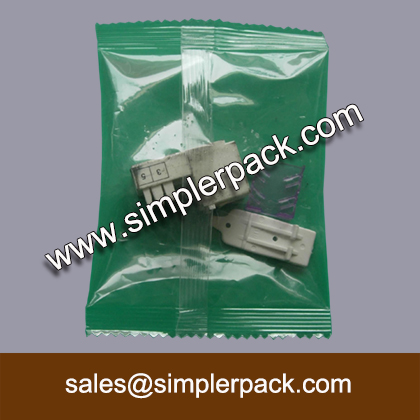

It is used to pack some small regular and irregular hardware components, electric objects and machining particles like plastic connector, crews, nail, round spacer, pin and rivet etc.
//Features: //
1.The whole procedure from weighing, bag forming, filling, sealing, cutting, counting and printing(with option of date code printer) can be automatically operated.
2.Adopting photoelectric tracking and stepless speed adjustment device.
3.It can perform pillow type packaging.
4.The machine need feeding manually.
//Technical data: //
Machine type: General Packing Machine Series
Machine model: T60BDS

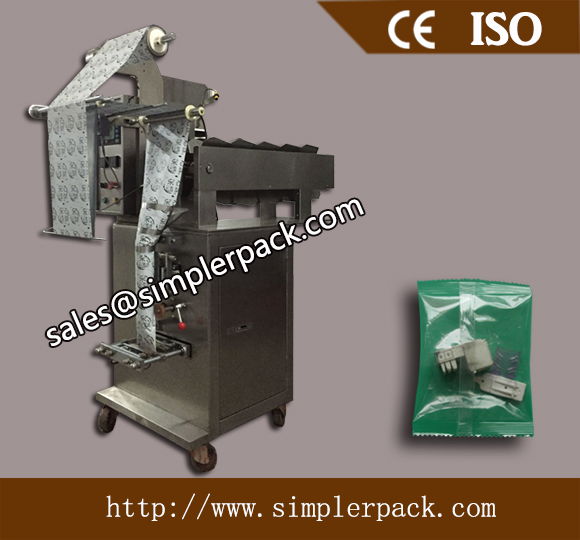

Machine name: Fully Automatic Back Seal Hardware Packing Machine
Filling range: 5~50 g(100~500g can be customized)
Filling system: Bucket filling
Packing speed: 20~50 bags/min
Bag size: L: 50-200mm; W: 50-240mm
Power supply: 220V, 50Hz, 1.8KW
Machine dimension : 650*900*1700mm(L*W*H)
Machine weight: 260KGS
