//Application: //

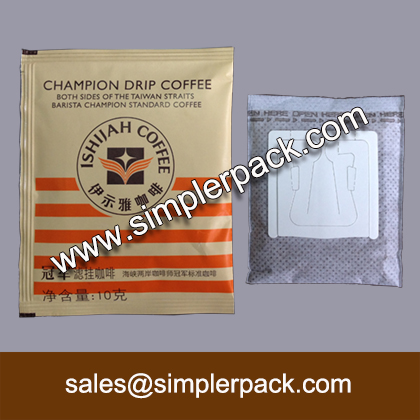

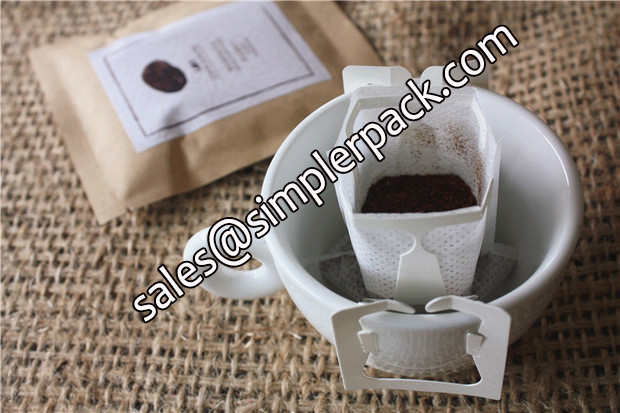

It is suitable for 5 to 15 gram ground coffee powder in drip coffee bag with outer envelop, such as Blue Mountain coffee, Columbia coffee, Brazil coffee, Kenya coffee, etc.
//Features: //
1.Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2.Adopts PID temperature controller for more accurate temperature adjustment.
3.Adopts PLC control system and touch screen color monitor device, machine is very easy to operate.
4. The main machine parts is made of SUS304 stainless steel, so it ensures hygiene products output.
5. Some cylinders are import
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Adopts automatic conveyor system.
8. Options: Date code printer.
//Standard Technical Data: //
Machine type: Drip Coffee Bag Packing Machine Series
Machine model: C19II
Machine name: Cost-effective Drip Coffee Packing Machine with Outer Envelope
Machine type: Drip Coffee Bag Packing Machine Series
Machine model: C19II
Machine name: Cost-effective Drip Coffee Packing Machine with Outer Envelope
Bag type: Heat sealing
Packing material: Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper
Feeding system: Volumetric cup filler
Package range: 5-15g
Inner bag size: L:50-75mm , W:50-90mm
Outer bag size: L:85-120mm , W:75-100mm
Inner bag film width (180mm): Bag size: L90mm*W75mm
Outer bag film width(200mm): Bag size: L120mm*W100mm
Power supply: Single phase, 220V, 50HZ, 3.7KW
Packing speed: 30-60bags/min
Machine weight: 400KGS
Machine dimension: 1200*900*1900mm (L*W*H)
