Topological structure

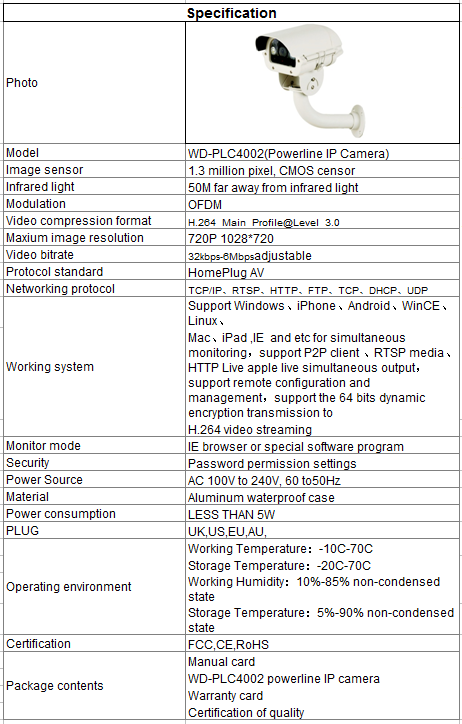

Speicification
Features/ Highlights:
1.With infrared lamp, monitoring whole day, supporting night vision scope within 50 meters
2.Supporting IP55 waterproof grade
3.Built-in WEB SERVER, supporting multiple browsers and parameter setting. o
ne port to transmit data, convenient for user network setting
4.OFDM technology
5.The transmission distance is up to 600meter in one powerline .it can cover 1000 sq.m
in the family and office building.
6.Supporting double code stream and AVI format and using H.264 video coding
7.Supporting video bit rate 32kbps~6Mbps adjustable main stream:
2592×1920,2048×1536,1920×1080,1600×1200,1280×1024,1280×960,1024×768,
