Touch screen polarimeter
Click to enlarge
Product:
Brand: Insmark
Price: Negotiable
MOQ:
Total supply:
Delivery time: From the date of payment from the buyer within 3days of delivery
update time: 2023-11-21 01:00  Valid to:2023-08-19 [Expired]
Profile

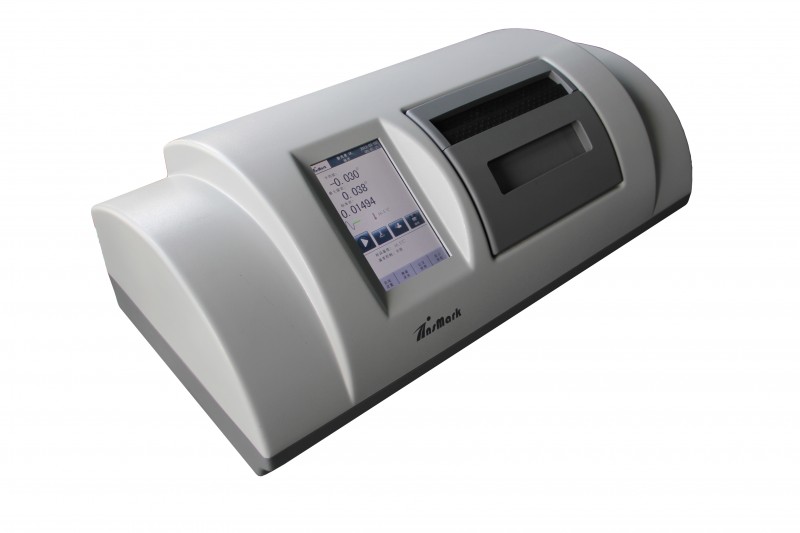

IP120E & IP140E

 > Best quality in traditional way

> Large touch screen, colorful



IP120E

Measuring range

±45°

Resolution

0.001°

Accuracy

±0.01°(up to 15°); ±0.02°(above 15°)

Reproducibility

±0.004°

Temperature range

0-95℃

Temperature resolution

0.1℃

Sensitivity

Min1%

Light source

LED light source, long time life for 100000 hours

Wavelength

589nm



Measuring mode

Optical rotation,

Specific rotation, Concentration,

International sugar scale

Sample chamber

Up to 200mm, package including: 200mm*1(glass tube)

100mm*1(glass tube)

Interface

RS232

Display

Touch screen, color LCD

Database

100 groups data

Voltage

220V±22V, 50Hz±1Hz

N.M. / G.W.

28Kg / 30Kg

Dimension(L*W*H)

73*37*30cm

Order number

85000024

































> Best quality in traditional way





IP140E

Measuring range

±85°

Resolution

0.001°

Accuracy

±0.01°(up to 15°); ±0.02°(above 15°)

Reproducibility

±0.004°

Temperature range

0-95℃

Temperature resolution

0.1℃

T. control model

Peltier

T. control range

15 - 40℃

T. control accuracy

±0.2℃

Sensitivity

Min0.5%

Light source

LED light source, long time life for 100000 hours

Wavelength

589nm



Measuring mode

Optical rotation,

Specific rotation, Concentration,

International sugar scale

Sample chamber

Up to 200mm, package including: 200mm*1(glass tube)

100mm*1(Temperature-controlled metal tube)

Interface

RS232, USB

Display

Touch screen, color LCD

Database

500 groups data

Voltage

220V±22V, 50Hz±1Hz

N.M. / G.W.

30Kg / 33Kg

Dimension(L*W*H)

73*37*30cm

Order number

85000025
